Schneider Electric

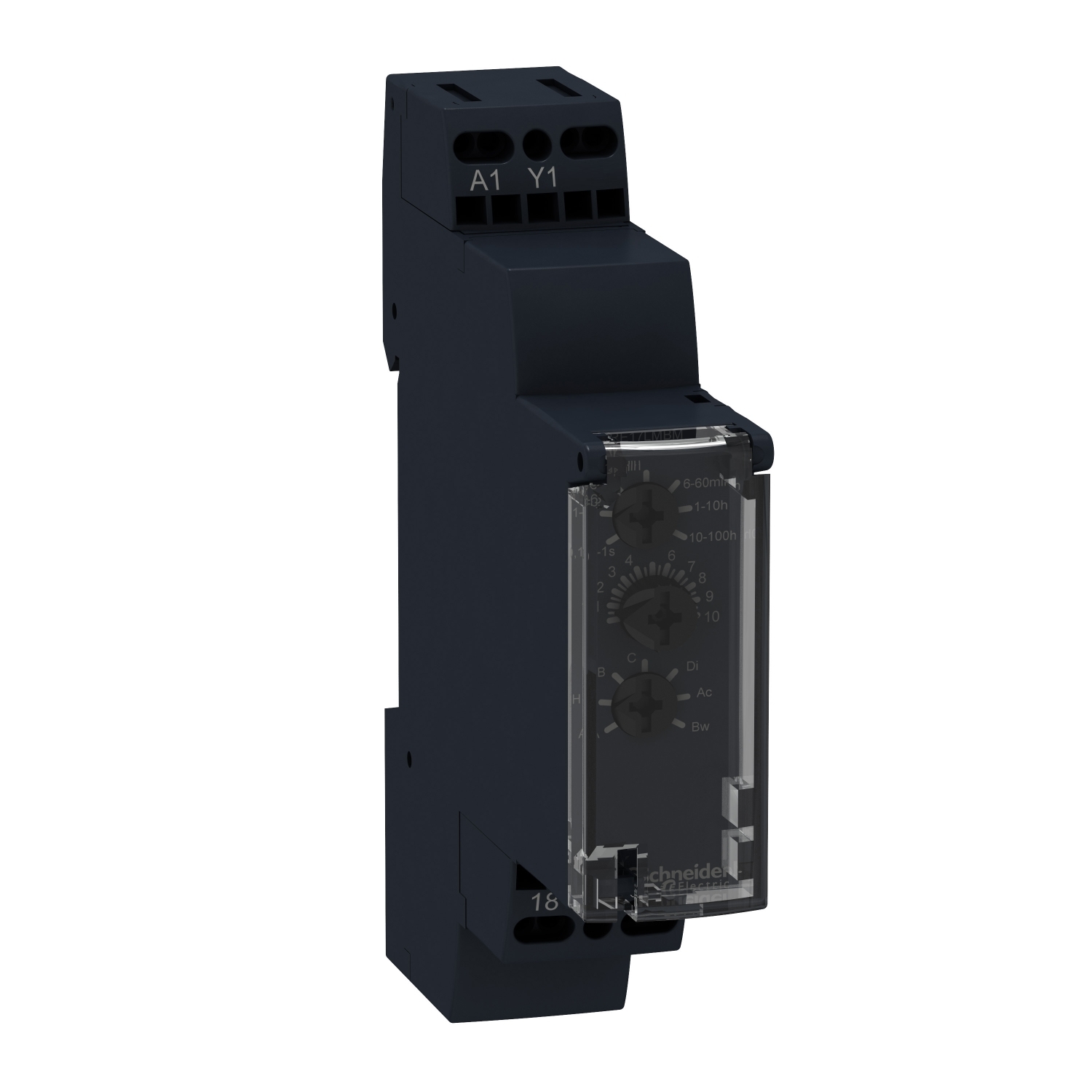

RE17LMBM Zelio 10-Function Modular Timing Relay With Solid State Output, 0.1 sec to 100 hr Setting, 24 to 240 V AC, 1 Form C SPDT Contact, 1 Poles

MFR:
Schneider Electric
MFR #:
RE17LMBM
Item #:
394759

This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Manuals & Documentation
Catalog Number RE17LMBM
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin Indonesia
Made in USA No
Mounting Din Rail
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=180422195&lang=en-us
GTIN 03606480552663
Item Type Solid state;Modular timing relay
Timing Range 1...10 s;6...60 s;6...60 min;1...10 h;10...100 h;1...10 min;0.1...1 s;Power on-delay - A- Power on-delay relay;on-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal;power on-delay - At- Power on-delay relay w/ pause/summation (Y1);interval - B- Single interval relay w/ control signal;interval - Bw- Double interval relay w/ control signal;off-delay - C- Off-delay relay w/ control signal;symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off);symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on);interval - H- Interval relay;interval - Ht- Interval relay w/ pause/summation (Y1)
