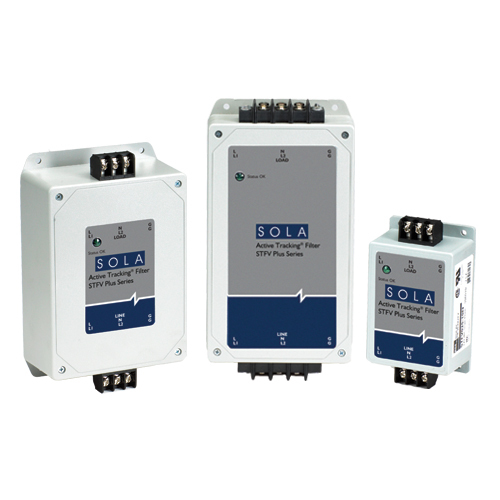

STFV150-10N STFV Plus Active Tracking Filter, 15 A at 120 V AC, 100 kHz to 50 MHz Bandwidth, 2 Wires, Plastic
- MFR:
- SolaHD
- MFR #:
- STFV150-10N
- UPC:
- 783472700356
- Item #:
- 394556
STFV150-10N STFV Plus Active Tracking Filter, 15 A at 120 V AC, 100 kHz to 50 MHz Bandwidth, 2 Wires, Plastic
- MFR #:
- STFV150-10N
- UPC:
- 783472700356
- Item #:
- 394556
Manuals & Documentation
| Catalog Number | STFV150-10N |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Branch and Control Panels, Factory Automation Installations, Point of Use Industrial Service Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools, Telecommunications and IT Equipment |
| Connector | # 6 Screw, Minimum Wire Size 18 AWG |
| Enclosure | High Impact Plastic Case |
| Frequency Rating | 50/60 HZ |
| Input | 120, Single Phase V |
| Mounting | Flange |
| Special Features | Non degrading, series filter/TVSS technology for total durability, UL surge current capacity -25,000 amps, High impact plastic case, epoxy encapsulated enclosure, Transient protection in all modes (L-N, L-G, and N-G), Single phase applications up to 30 amp, Operating temperature from -40 DEG C to +60 DEG C, Hardwired connection, LED power indication |
| Standard | CSA Certified: CSA C22.2 No. 8, cULus Recognized Component: UL 1283, RoHS Compliant |
| UPC | 783472700356 |
| GTIN | 00783472700356 |
| Item Type | STFV Plus Series -Active Tracking Filters with Surge Protection |
| Length | 4.75 |
| Width | 4.75 |
| Height | 2.35 |
