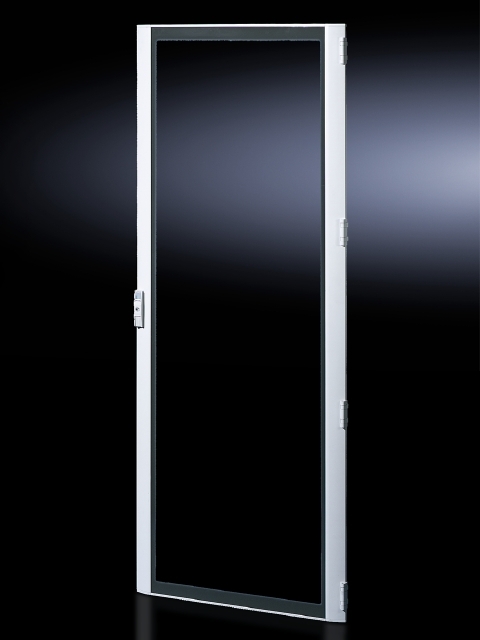

8610605 TS Series Glazed Door With 18 in W x 72 in H Viewing Area, For Use With TS, TS IT, SE8 Series 2000 mm H x 600 mm W Enclosure, Die Cast Zinc/Extruded Aluminum/Glass
- MFR:
- Rittal
- MFR #:
- 8610605
- UPC:
- 639889873773
- Item #:
- 393342
8610605 TS Series Glazed Door With 18 in W x 72 in H Viewing Area, For Use With TS, TS IT, SE8 Series 2000 mm H x 600 mm W Enclosure, Die Cast Zinc/Extruded Aluminum/Glass
- MFR #:
- 8610605
- UPC:
- 639889873773
- Item #:
- 393342
Glazed door, for TS, TS IT, SE, material: Frame: Extruded aluminium section, Corner pieces: Die-cast zinc, Viewing window: Single-pane safety glass, 3 mm, surface: Powder-coated, color: Frame: RAL 7035, Corner pieces: RAL 7035, Viewing window (printed mask on the inside): RAL 9005, supply includes: Viewing door frame with safety glass, Locking rod with double-bit insert, 180 hinges (4), description: Glazed doors for TS 8 instead of a sheet steel door or rear panel.
| Catalog Number | 8610605 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Color | RAL 7035 (Frame/Corner Pieces), RAL 9005 (Viewing Window) |
| Consist of | Glazed Door Frame with Safety Glass, Locking Rod with Double-Bit Insert, 180 Degrees Hinges (4 Pcs) |
| Material | Extruded Aluminum (Frame), Die-Cast Zinc (Corner Pieces), Single-Pane Safety Glass (Viewing Window) |
| RoHS Indicator | Yes |
| UPC | 639889873773 |
| GTIN | 00639889873773 |
| Item Type | Glazed Door |
| Length | 3.1500 |
| Length UOM | Inch |
| Width | 25.1970 |
| Width UOM | Inch |
| Height | 79.9210 |
| Height UOM | Inch |
| Weight | 33.069 |
| Weight UOM | Pounds |
