SQUARE D

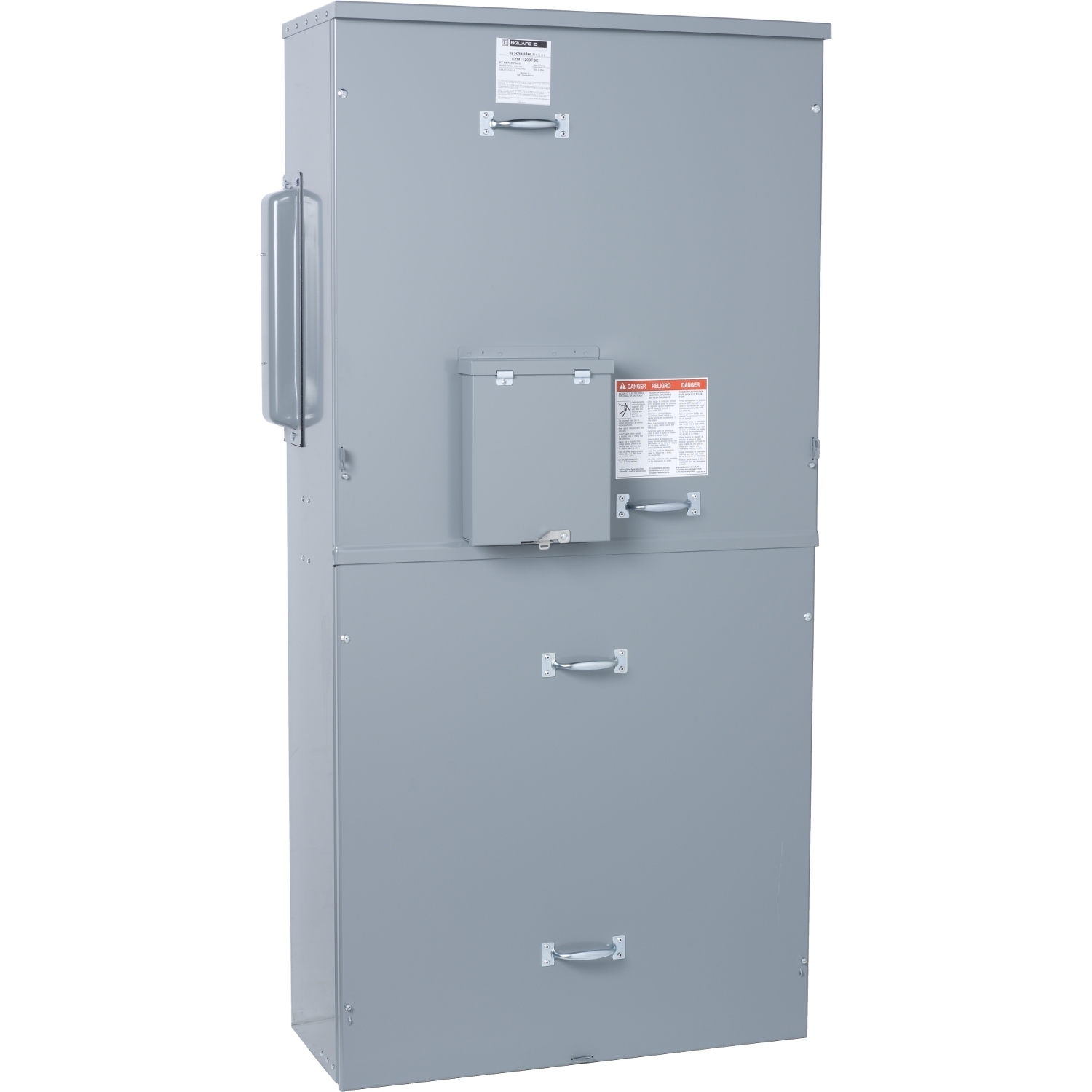

EZM11200FSB EZM Meter 1 Phase, 1200 Amp, SW, UG

MFR:
Schneider Electric
MFR #:
EZM11200FSB
UPC:
785901865766
Item #:
392021

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install. Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices. External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main fusible switch provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from UG feeds. The unit is rated for 1200A with the busbar rated for 1200A. With a 300V Class T fuse, the short circuit current rating is 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Manuals & Documentation
Catalog Number EZM11200FSB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Bypass Type Review
Enclosure Painted steel
Mounting Surface
Phase 1
Special Features Main Fusible Switch
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267978492&lang=en-us
UPC 785901865766
GTIN 00785901865766
Item Type Meter center main unit
Width 23.69
Width UOM Inch
Height 65.3
Height UOM Inch
Depth 13.69 IN
