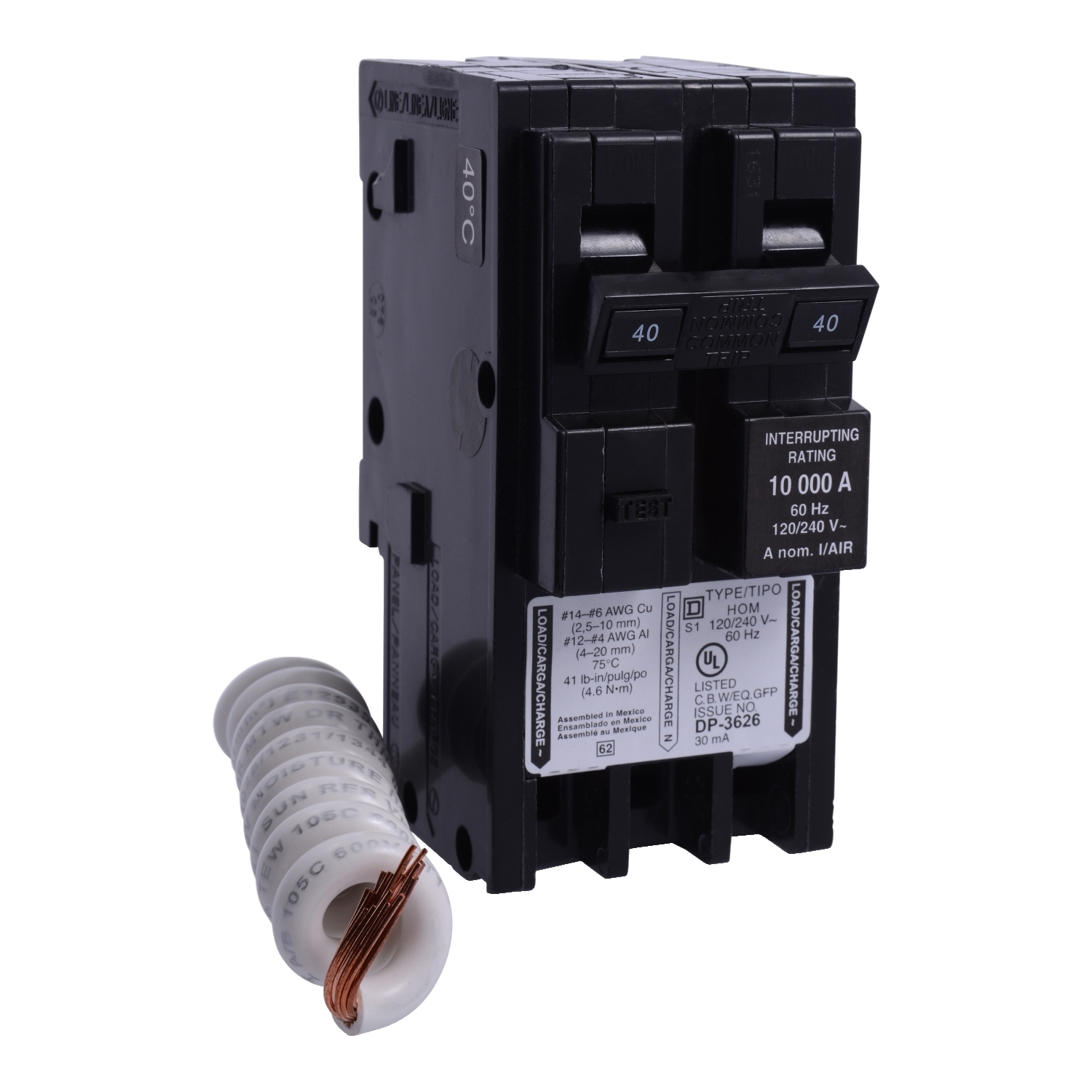

HOM240EPD Homeline Miniature Circuit Breaker, 40 Amp, 2 Pole, 120/240V
- MFR:
- Schneider Electric
- MFR #:
- HOM240EPD
- UPC:
- 785901493358
- Item #:
- 389323
HOM240EPD Homeline Miniature Circuit Breaker, 40 Amp, 2 Pole, 120/240V
- MFR #:
- HOM240EPD
- UPC:
- 785901493358
- Item #:
- 389323
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 40A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline circuit breaker has Class B equipment protection ground fault protection. This Homeline circuit breakers has 30mA equipment ground fault protection. The electrical connection is a clamp terminal that will accept 1 wire. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
Manuals & Documentation
| Catalog Number | HOM240EPD |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:Lifetime |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398107&lang=en-us |
| UPC | 785901493358 |
| GTIN | 00785901493358 |
