Lutron

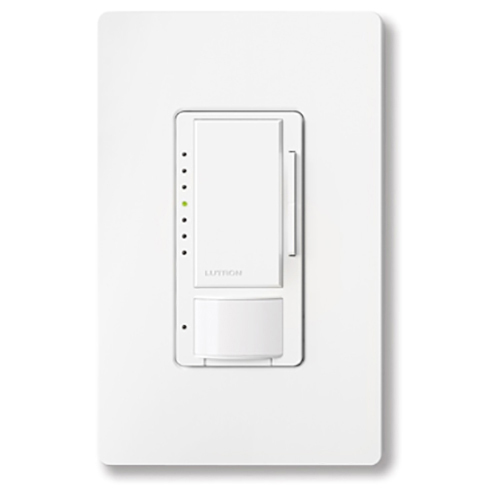

MSCL-OP153MH-WH Maestro LED+ Motion Sensor Dimmer Switch, 150W LED, 120V, 1 Pole/Multi-Location, White

MFR:
Lutron Electronics
MFR #:
MSCL-OP153MH-WH
UPC:
784276055154
Item #:
389142
Manuals & Documentation
Catalog Number MSCL-OP153MH-WH
Manufacturer Lutron Electronics
Brand Lutron
Application Lighting Control
Enclosure Plastic
Mounting Wall
Sensing Range 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
Sensor Yes
Special Features Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro LED+ dimmer with an occupancy sensor. Controls CFL, LED, incandescent, and halogen load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches
Standard UL, cUL, Title 20/24 certified
Supply Voltage 120 VAC
UPC 784276055154
GTIN 00784276055154
Item Type Occupancy sensor dimmer, multi-location/3-way/single-pole, clamshell packaging
Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only.
Operating Temperature 32 to 104 F (0 to 40 C) F
