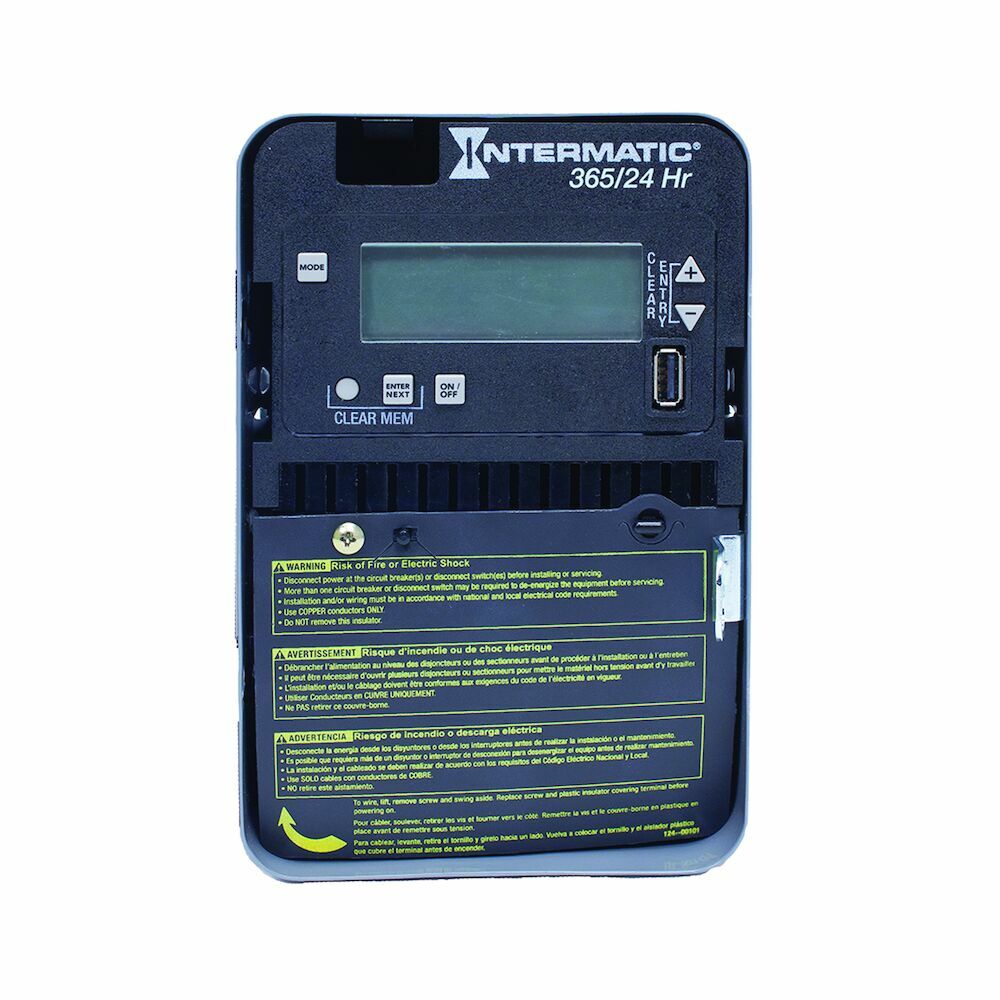

ET2105C 365 Day/24 Hour 1 Circuit Electronic Controller, 120-277V, SPST, Indoor Metal Enclosure

MFR:
Intermatic
MFR #:
ET2105C
UPC:
078275147959
Item #:
387382

The 365/24-Hour Electronic Control features 24-hour programming. Up to 48 ON and 48 OFF events can be preset to automatically repeat, and can handle complex 24-hour schedules. This electronic control provides dependable and uncomplicated performance, plus to-the-minute programming for accurate load control and reduced energy costs. Each event can be applied to any combination of circuits. In addition, the programming can be easily disabled by changing to the manual operating mode. An additional mode of operation allows for the ON/OFF buttons to be used as a 2-hour override, in compliance with current regulations. Manual circuit control buttons operate circuits independently, based on the mode of operation. 50 Holiday Block Scheduling exception dates are available to prevent regularly scheduled events, or allow for a holiday schedule. Comes equipped with a time and date retaining super capacitor for a minimum of 100 hours, eliminating battery dependency. Housed in a lockable enclosure for vandalism and tampering protection.

Catalog Number ET2105C
Manufacturer Intermatic
Brand Intermatic
Country of Origin Mexico
Made in USA No
Action 1 x SPST
Amperage Rating 30
Application Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Connection Wire Lead
Contact Configuration 1 NO
Contact Rating 30 AMP @ 120/240 VAC, 20 AMP @ 28 VDC (Resistive), 30 AMP @ 120/240 VAC (Inductive), 5 AMP @ 120/240 VAC (Tungsten), 20 AMP @ 120 - 277 VAC, 10 AMP @ 120/277 VAC (Ballast)
Enclosure Type 1 Steel
Mounting Wall
Number of Poles 1
Special Features Features: Automatic Voltage Detection for Fast, Easy, Out-of-the-Box Installations, Control Different Load Types and Voltages from a Single Control, Adjust Daylight Savings Time Through Software, Rather than DIP Switches, Configurable Outputs Allow These Models to Cover Various Types of Applications with a Single Clock, New Mode of Operation Allows For Manual On/Off Buttons to Operate as a 2-Hour Override, Non-Volatile Eeprom Memory Protects Programming Indefinitely, 2 Year Warranty
Standard UL Rating, Meet Title 20/24 Compliance
UPC 078275147959
GTIN 00078275147959
Item Type Electronic
Operating Temperature -40 to +155 DEG F, -40 to +68 DEG C
Timing Range 1 MIN - 23 HR 59 MIN
Voltage Rating 120 - 277
