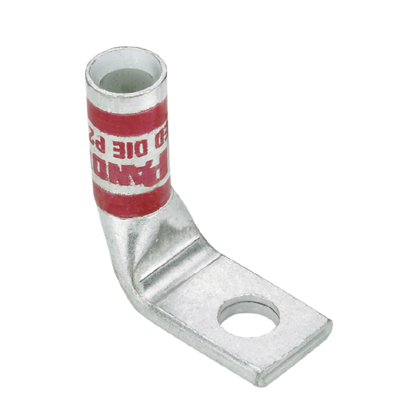

One-hole, standard barrel with window lug, #4 #3 AWG STR, #2 AWG SOL wire, 90 angle tongue, 5/16 stud hole.
Manuals & Documentation
| Catalog Number | LCA4-56F-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Gray |
| Material | Tin Plated Copper |
| Number of Holes | 1 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| UPC | 074983559077 |
| GTIN | 00074983559077 |
| Item Type | Compression Lug |
| Size | #4 — #3 AWG Code STR, #2 AWG Code SOL |
| Stud Size | 5/16 IN |
