O-Z/Gedney

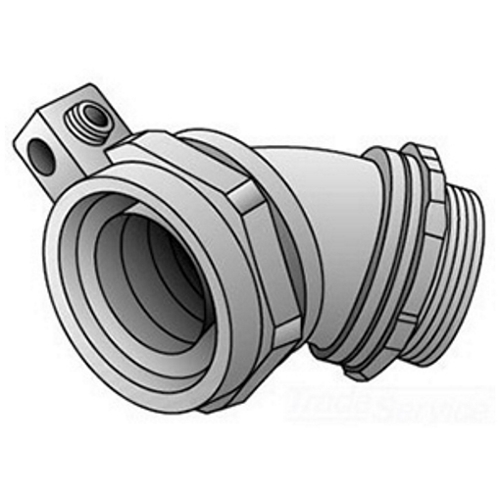

4Q-475L Ground-Tite Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug, 3/4 in Trade, 14 to 4 AWG Cable Openings, 45 deg, Malleable Iron, Zinc Electroplated

MFR:
O-Z/Gedney
MFR #:
4Q-475L
UPC:
783126618419
Item #:
38555
Manuals & Documentation
Catalog Number 4Q-475L
Manufacturer O-Z/Gedney
Brand O-Z/Gedney
Country of Origin Mexico
Made in USA No
Application For Liquidtight Flexible Metal Conduit
Conductor Range 14 - 4
Connection Compression X Tapered MNPT Hub
Finish Zinc Electroplated
Material Malleable Iron Body And Nut, Steel Ferrule
NEMA Rating 4
Special Features 4Q-L fittings have plain throat (non-insulated); Used to secure, ground and seal liquidtight flexible metal conduit to boxes and enclosures; Hot dip or mechanically galvanized finish optionally available; Positive grounding type; Grounding lug is cast as an integral part of malleable iron gland nut; capable of withstanding high ground fault; Compact, slim diameter with small turning radius; Furnished with locknut and knockout sealing ring; Liquidtight/raintight/oiltight/concretetight; UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant); Intrinsically safe; Bonding wedge locknuts are recommended in hazardous locations; Long ferrule prevents pullout and tight bend conduit pop-out; Inspection windows in ferrule to ensure full engagement
Standard Third Party Certification: UL File Number E-24264, CSA 9795, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
UPC 783126618419
GTIN 00783126618419
Item Type Type 4Q-L Grounding Liquid Tight 45 DEG Connector With Lug
Size 44624
