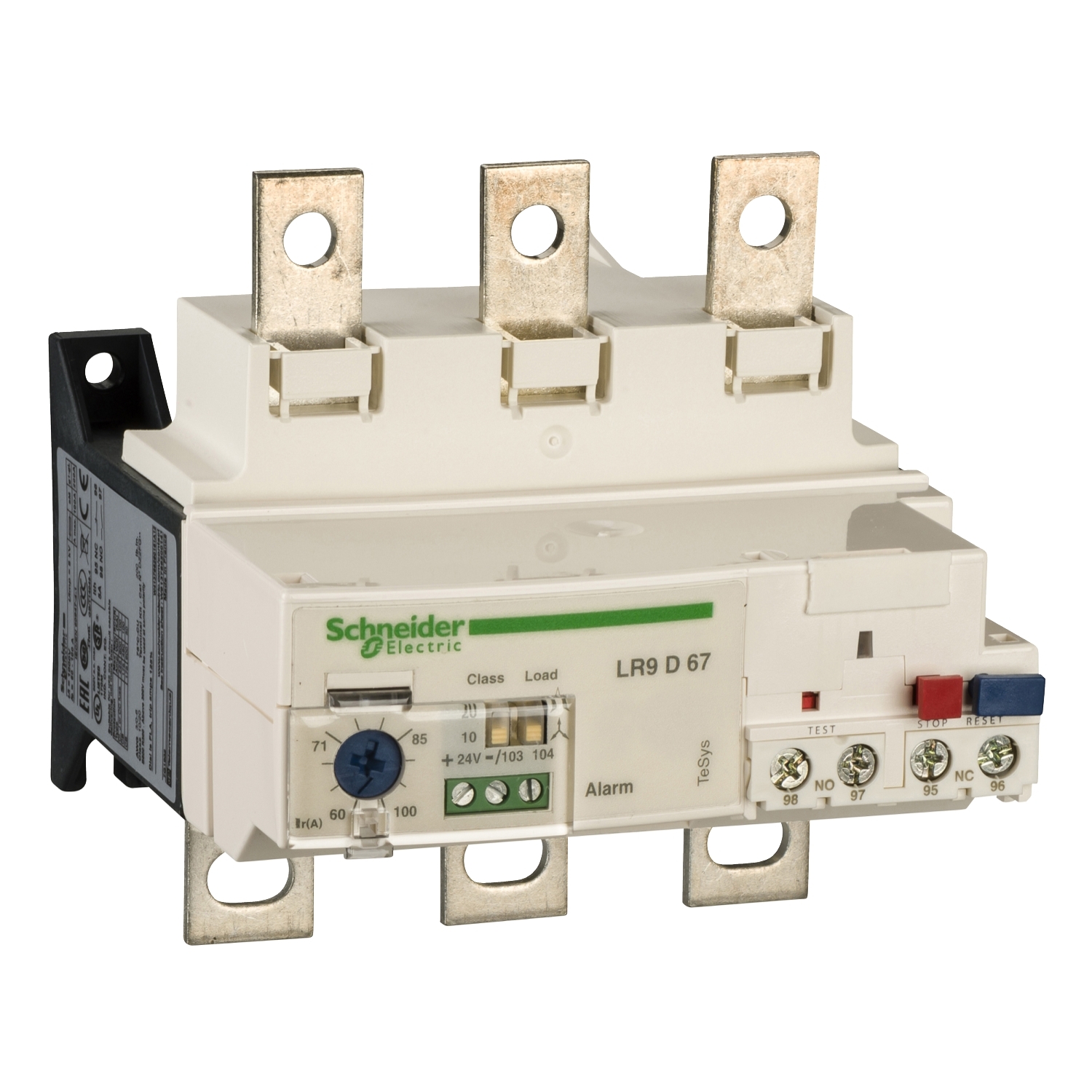

LR9D69 TeSys LR9D Electronic Solid State Thermal Overload Relay, 90 to 150 A, 1NO-1NC 1 Form A/1 Form B Contact

MFR:
Schneider Electric
MFR #:
LR9D69
Item #:
385487

LR9D69 is a TeSys LR9D electronic overload relay from Schneider Electric to be used with a TeSys D contactor. With a thermal range 90-150A, selectable tripping class 10-20, it protects motors 55 to 75kW@400V, for unbalanced loads. LR9D69 is a TeSys LR9D electronic overload relay from Schneider Electric to be combined with a TeSys D contactor. With a thermal setting range 90-150A and a selectable tripping class 10-20, it protects unbalanced loads and motors 55 to 75kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator, a pre-alarm circuit. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Thermal overload protection, electronic type, for use with unbalanced loads (non differential), self powered (no external power supply needed). To be combined with Tesys LC1D115-D150 contactors. Light and compact, 120mm wide. Manual control with test & reset buttons, manual / automatic reset selector. High accuracy, temperature compensated to keep a precise tripping over the ambient temperature range. Selectable tripping class 10 or 20. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator, pre-alarm signaling circuit at 105% thermal level. 90% reduction in energy dissipation compared to a thermal overload relay.

Manuals & Documentation
Catalog Number LR9D69
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=640032&lang=en-us
GTIN 03606485335797
