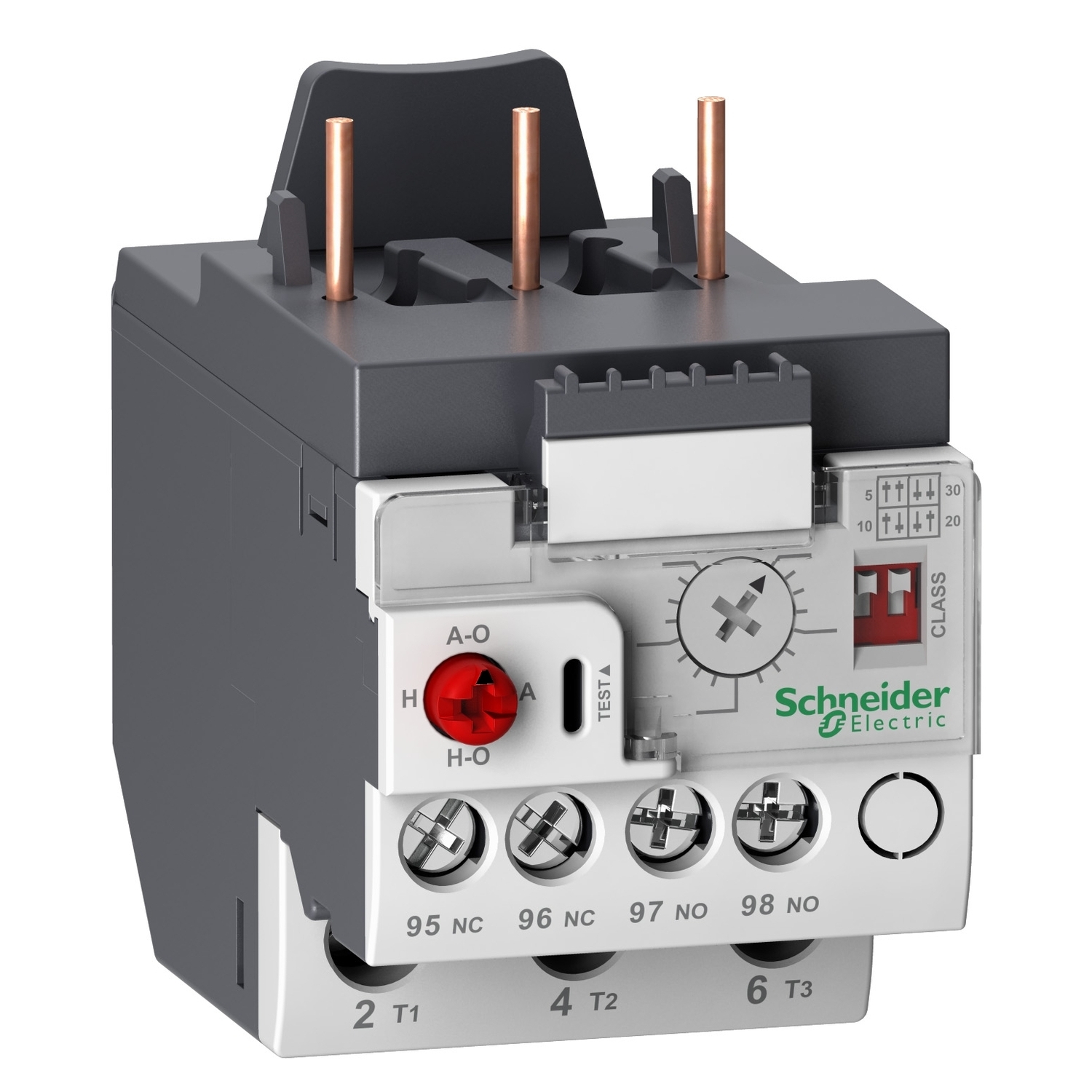

LR9D08 TeSys Electronic Thermal Overload Relay, 1.6 to 8 A, 1NO-1NC 1 Form A/1 Form B Contact
- MFR:
- Schneider Electric
- MFR #:
- LR9D08
- Item #:
- 385153
LR9D08 TeSys Electronic Thermal Overload Relay, 1.6 to 8 A, 1NO-1NC 1 Form A/1 Form B Contact
- MFR #:
- LR9D08
- Item #:
- 385153
TeSys LR9D electronic overload relay, 8A/690V, thermal setting range 1.6-8A, selectable tripping class 5-10-20-30, for protection of 3-phase motors 0.75-3kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from contactor, with use of the terminal block LAD7B205 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC), RoHs/Reach.
Manuals & Documentation
| Catalog Number | LR9D08 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | China |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422028598&lang=en-us |
| GTIN | 03606485420943 |
| Cross Reference Products | Eaton E05NBXRC3A |
