XCMD21F2L1 OsiSense XC Fixed Heavy Duty Miniature Standard Format Plunger Actuated Limit Switch, 240 VAC, 250 VDC, 6 A, Spring Return Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCMD21F2L1
- UPC:
- 785901682639
- Item #:
- 38509
XCMD21F2L1 OsiSense XC Fixed Heavy Duty Miniature Standard Format Plunger Actuated Limit Switch, 240 VAC, 250 VDC, 6 A, Spring Return Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCMD21F2L1
- UPC:
- 785901682639
- Item #:
- 38509

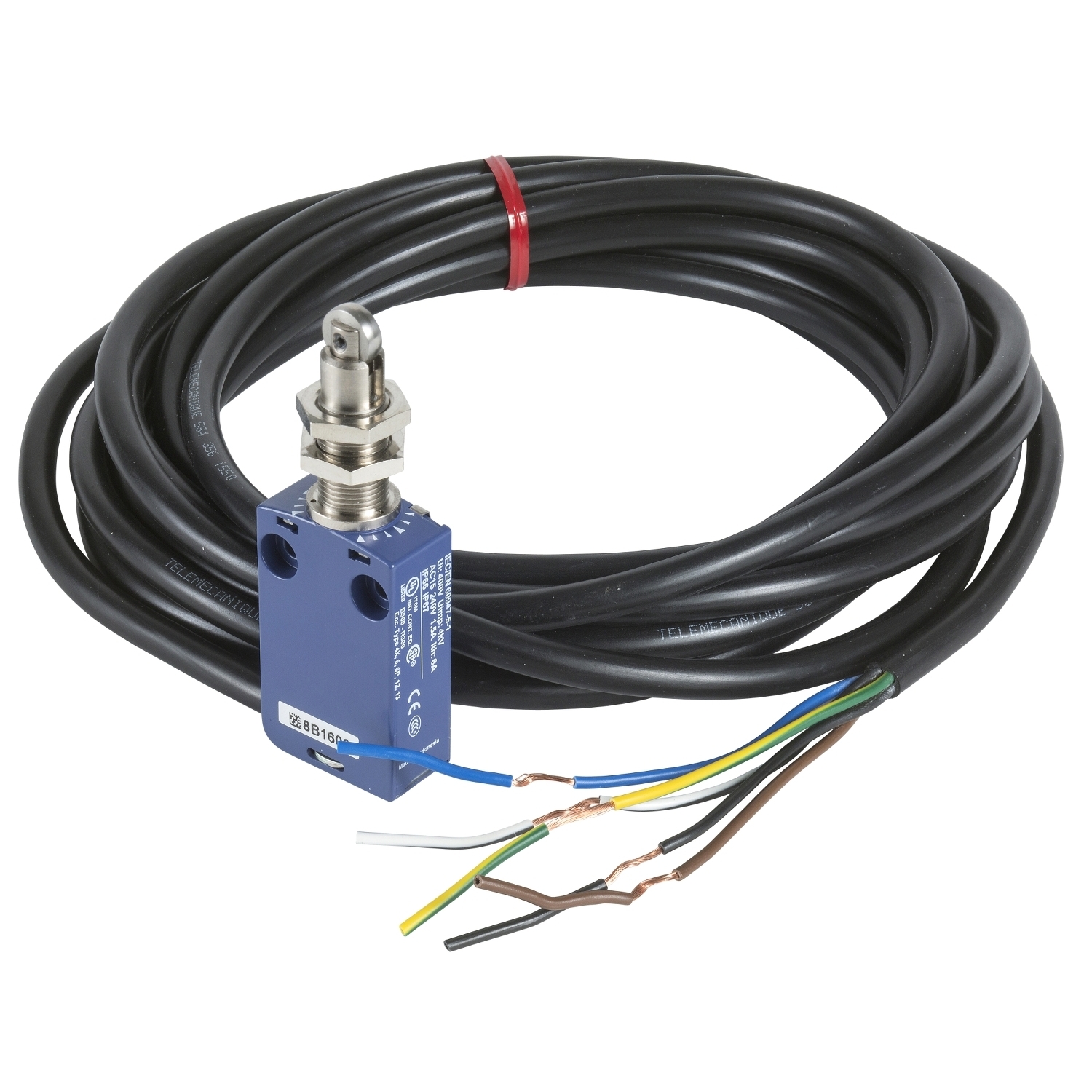

This XCMD miniature format limit switch has a steel roller plunger and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and is pre-cabled with 1m cable. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Manuals & Documentation
| Catalog Number | XCMD21F2L1 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller plunger metal |
| Amperage Rating | 6 |
| Application | MINIATURE VARIABLE |
| Connection | Removable cable connector |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | NEMA 1/2/4X/6/6P/12/13 IP66/67/68 |
| Mounting | By The Head |
| Special Features | FIXED,METAL |
| Standard | 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA-UL-CCC,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,UL 508-EN/IEC 60204-1-EN/IEC 60947-5-1-CSA C22.2 NO 14 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857782&lang=en-us |
| UPC | 785901682639 |
| GTIN | 03389110220032 |
| Item Type | Limit switch |
| Size | 16 MM,30 MM,50-50 MM |
| Operating Temperature | -25-70 A�C |
| Voltage Rating | 240VAC/250VDC |
| Cross Reference Products | Schneider XCMD21F2L1|Schneider XCMF102|Schneider XCMF102H7|Schneider XCMF103|Telemecan XCMD21F2L1 |
