20A GFCI works with the existing three-wire PlugTail connectors creating a non-feed thru application for facility owners. At rough-in, just install the same right-angle connector for GFCI and receptacle openings. PlugTail Registered devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.

Manuals & Documentation
Catalog Number PT2097GRY
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Warranty Description 1-Year Limited Warranty
Country of Origin China
Made in USA No
Actuator Control Circuit
Amperage Rating 20
Application Commercial
Connection Built-in Connector
Frequency Rating 60 Hz
Interrupt Rating 4 to 6 mA
Material Thermoplatic
Number of Poles 2
Special Features Pass & Seymour invented the GFCI receptacle, and at Legrand, we're constantly reinventing it to ensure the highest level of safety possible. From the most advanced self-testing device to audible alarms to nightlight combos, we're continuously resetting the bar on GFCI innovation and safety.
Standard cULus, UL Listed, FSUL
UPC 785007048346
GTIN 00785007048346

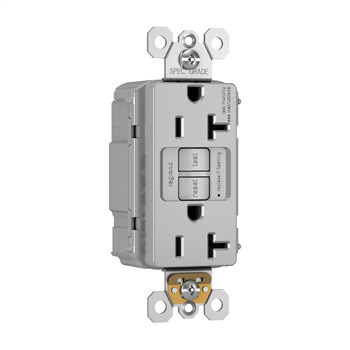

Item Type PLUGTAIL® Specification Grade 20A Self-Test Duplex GFCI
Length 1.03
Width 1.73
Height 4.2
Operating Temperature -35 Degrees C to +66 Degrees C
Trip Range 4 to 6 mA
Trip Type .025 Second Nominal
Voltage Rating 125
