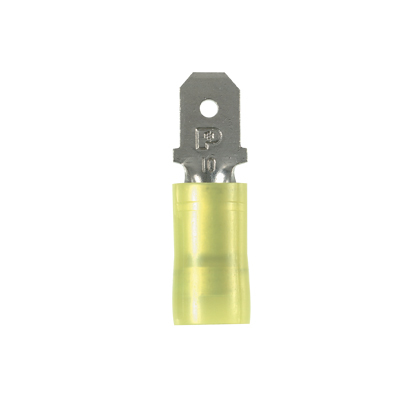

DNF10-250M-D Pan-Term DNF-M Fully Insulated Loose Piece Vibration-Resistant Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard Barrel, Copper, Yellow
- MFR:
- Panduit
- MFR #:
- DNF10-250M-D
- UPC:
- 074983827725
- Item #:
- 384840
DNF10-250M-D Pan-Term DNF-M Fully Insulated Loose Piece Vibration-Resistant Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard Barrel, Copper, Yellow
- MFR #:
- DNF10-250M-D
- UPC:
- 074983827725
- Item #:
- 384840
The vibration resistant male tab disconnect is made of base metal copper and nickel-plated. It is barrel insulated in a yellow, nylon housing. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm). It is 1.03 (26.2 mm) long and 0.25 (6.4 mm) wide. The disconnect has a standard barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 500.
Manuals & Documentation
| Catalog Number | DNF10-250M-D |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Connection | Standard |
| Finish | Nickel-Plated |
| Insulation | Nylon |
| Material | Copper |
| UPC | 074983827725 |
| GTIN | 00074983827725 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #10 AWG |
