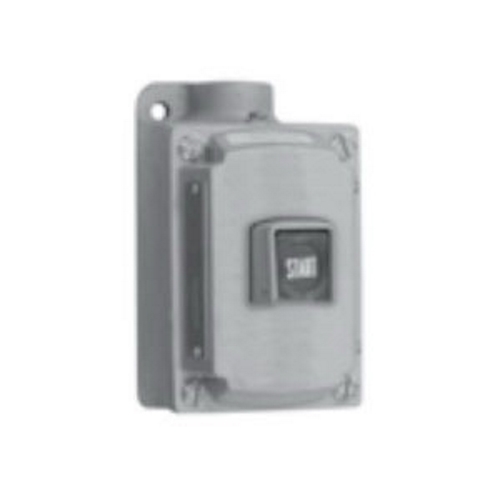

EDS2192UM1 Contender 1-Gang 2-Circuit Dead End Pushbutton Control Station, 600 V AC, 10 A, 1 Operators, NEMA 3/7CD/9EFG NEMA Rating
- MFR:
- Appleton Electric
- MFR #:
- EDS2192UM1
- UPC:
- 781381966375
- Item #:
- 381936
EDS2192UM1 Contender 1-Gang 2-Circuit Dead End Pushbutton Control Station, 600 V AC, 10 A, 1 Operators, NEMA 3/7CD/9EFG NEMA Rating
- MFR #:
- EDS2192UM1
- UPC:
- 781381966375
- Item #:
- 381936
Contender EDS Series 1-Gang 2 Circuit Push Button Switch, Action: Maintained, Contact Rating: 10 AMP At 600 VAC, Actuator: Red Mushroom Head, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, Material: Mal
Manuals & Documentation
| Catalog Number | EDS2192UM1 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Maintained |
| Application | For Remote Control Of Motors |
| Enclosure | NEMA 3, 7CD, 9EFG |
| Mounting | Surface |
| Special Features | Covers are UL Listed when used on Contender bodies; Ground screw installed in bodies for ground continuity; Corrosion resistant stainless steel hex head captive screws hold covers to body; Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Smooth, rounded integral bushing in each hub protects conductor insulation; Push button and selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements |
| Standard | UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G And Class III |
| UPC | 781381966375 |
| GTIN | 00781381966375 |
| Item Type | EDS Series 1-Gang 2 Circuit Push Button Switch |
