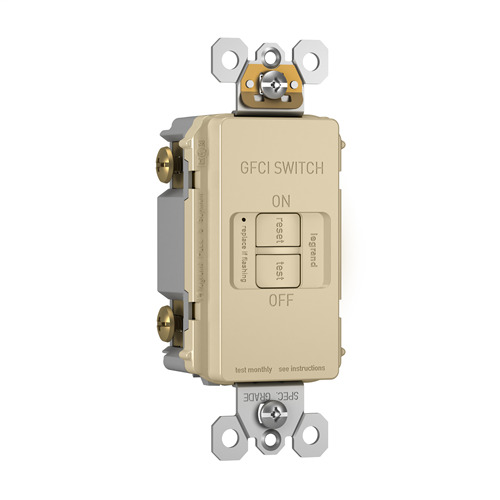

This dead front receptacle is a ground fault circuit interrupter designed for use when access to power isn't also needed. Ideal for use in spaces where ground fault protection is required around large or hard-to-move equipment, such as residential spa or hydromassage tubs and commercial kitchen appliances. The device features a convenient indicator light and accessible test/reset buttons that make trips easier to recognize and fix than with GFCI breaker alternatives. Conducts an automatic every three seconds to ensure reliable protection, while also featuring the sleek, clean lines of the radiant Registered Collection for a sophisticated look. Made exclusively for use with screwless Wall Plates from the radiant Registered Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

Catalog Number 2087I
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Warranty Description 1-Year Limited Warranty
Country of Origin China
Made in USA No
Actuator Control Circuit
Amperage Rating 20
Application Commercial;Residential
Connection Back and Side Wire
Frequency Rating 60 Hz
Interrupt Rating 4 to 6 mA
Material Thermoplatic
Mounting Box
Number of Gangs 1
Number of Poles 2
Special Features Pass & Seymour invented the GFCI receptacle, and at Legrand, we're constantly reinventing it to ensure the highest level of safety possible. From the most advanced self-testing device to audible alarms to nightlight combos, we're continuously resetting the bar on GFCI innovation and safety.
Standard cULus, UL Listed, FSUL
UPC 785007036077
GTIN 00785007036077
Item Type Specification Grade Dead-Front 20A Self-Test GFCI Receptacle
Length 1.03
Width 1.73
Height 4.2
Environmental Conditions 95% Humidity, UL 94 V2
Operating Temperature -35 Degrees C to +66 Degrees C
Trip Range 4 to 6 mA
Trip Type .025 Second Nominal
Voltage Rating 125
