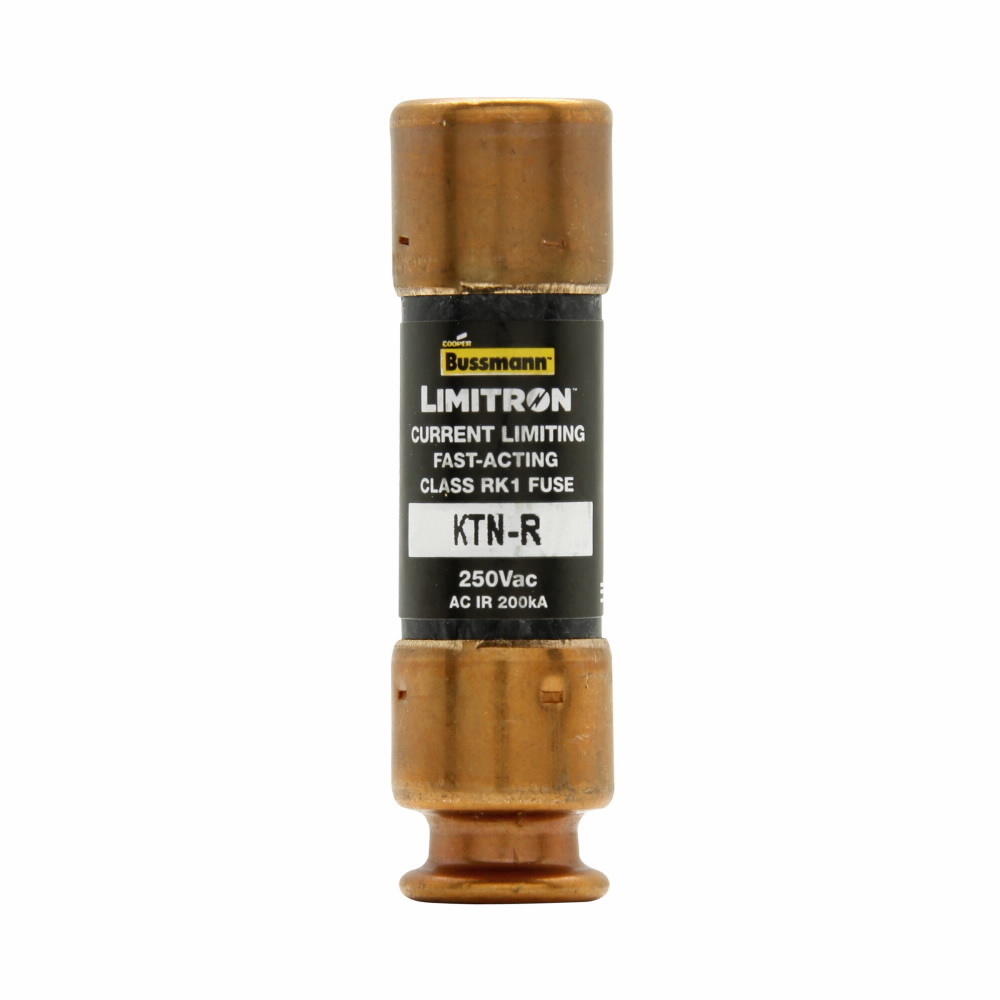

KTN-R-15 Limitron Fast Acting Current Limiting Low Voltage Fuse, 15 A, 250 V, 10000 A Interrupt, RK1 Class, Cartridge Body
- MFR:
- Eaton Bussmann
- MFR #:
- KTN-R-15
- UPC:
- 051712407045
- Item #:
- 380334
KTN-R-15 Limitron Fast Acting Current Limiting Low Voltage Fuse, 15 A, 250 V, 10000 A Interrupt, RK1 Class, Cartridge Body
- MFR #:
- KTN-R-15
- UPC:
- 051712407045
- Item #:
- 380334
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
| Catalog Number | KTN-R-15 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton |
| Sub Brand | Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 200000 Amp (RMS Symmetrical), 10000 Amp at 250 Vdc |
| Material | Melamine glass tube |
| Special Features | 70/30 brass end cap |
| Standard | Not Applicable |
| UPC | 051712407045 |
| GTIN | 00051712407045 |
| Item Type | Fuse |
| Dimensions | 2.0000 IN X 0.5600 IN X 0.5600 IN |
| Weight UOM | Pounds |
| Size | 0.56 In Diameter X 2.00 In Length |
| Voltage Rating | 250 V |
