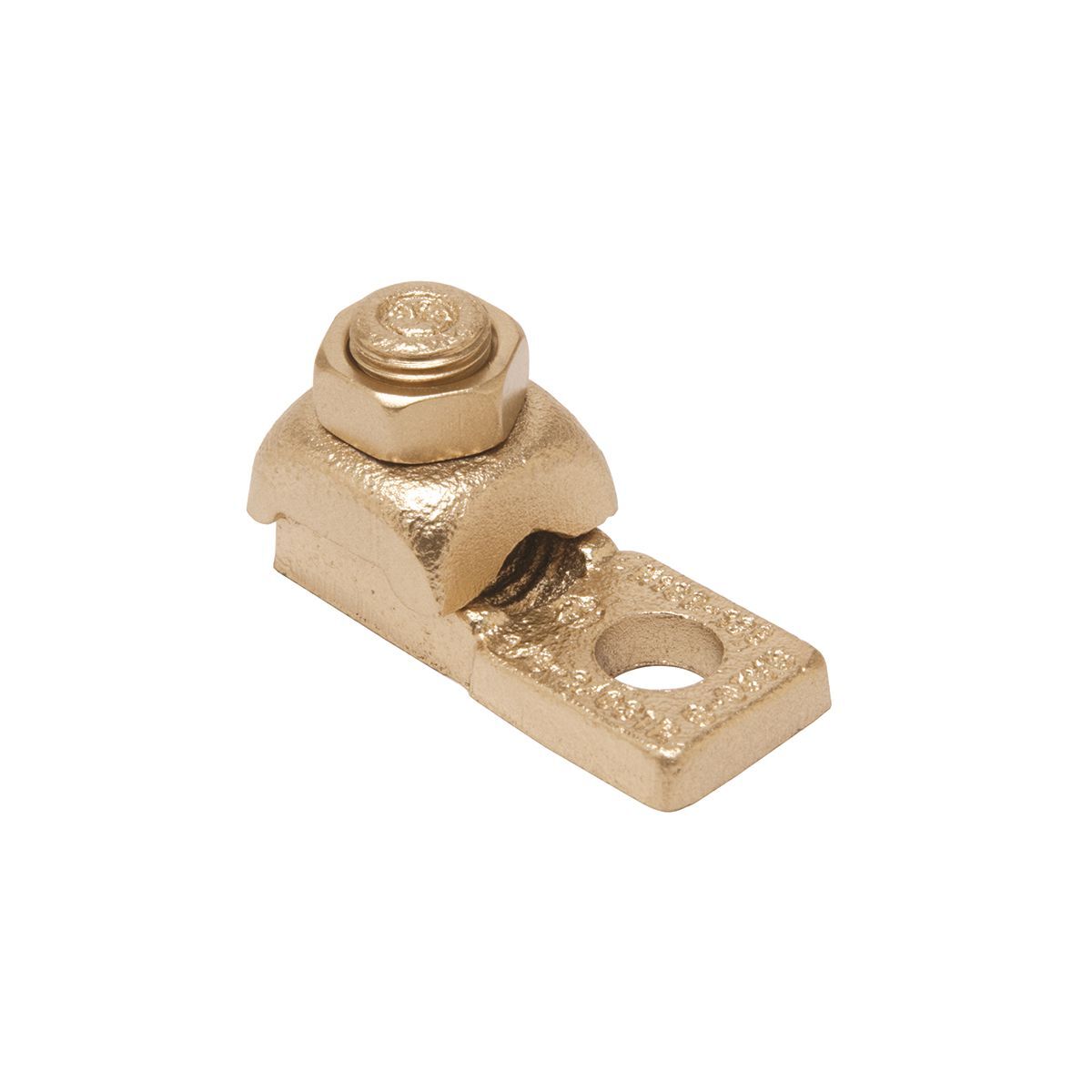

QA31B 1-Stage Heavy Duty Mechanical Bolted Lug and Terminal, 250 to 350 kcmil Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- QA31B
- UPC:
- 781810315323
- Item #:
- 378462
QA31B 1-Stage Heavy Duty Mechanical Bolted Lug and Terminal, 250 to 350 kcmil Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Copper
- MFR #:
- QA31B
- UPC:
- 781810315323
- Item #:
- 378462
Manuals & Documentation
| Catalog Number | QA31B |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bars |
| Material | Copper |
| Special Features | Features: Type QA Heavy Duty, Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar, Fast One Wrench Installation, Dimension K: 17/32 IN, Number Of Clamping Elements: 1, Dimension D: 1-3/8 IN, Dimension N: 11/16 IN, Dimension T: 5/16 IN, Stud/bolt Hole Size: 1/2 IN, Tongue Width: 1-3/16 IN, Conductor Type: Run: Commercial Stranded Copper, Navy Copper, Length: 2-11/36 IN, Installation Torque: 325 IN-LB, Height: 1-11/16 IN |
| Standard | UL 486A-486B |
| UPC | 781810315323 |
| GTIN | 00781810315323 |
| Item Type | Bolted Lugs & Terminals |
| Temperature Rating | 194 |
