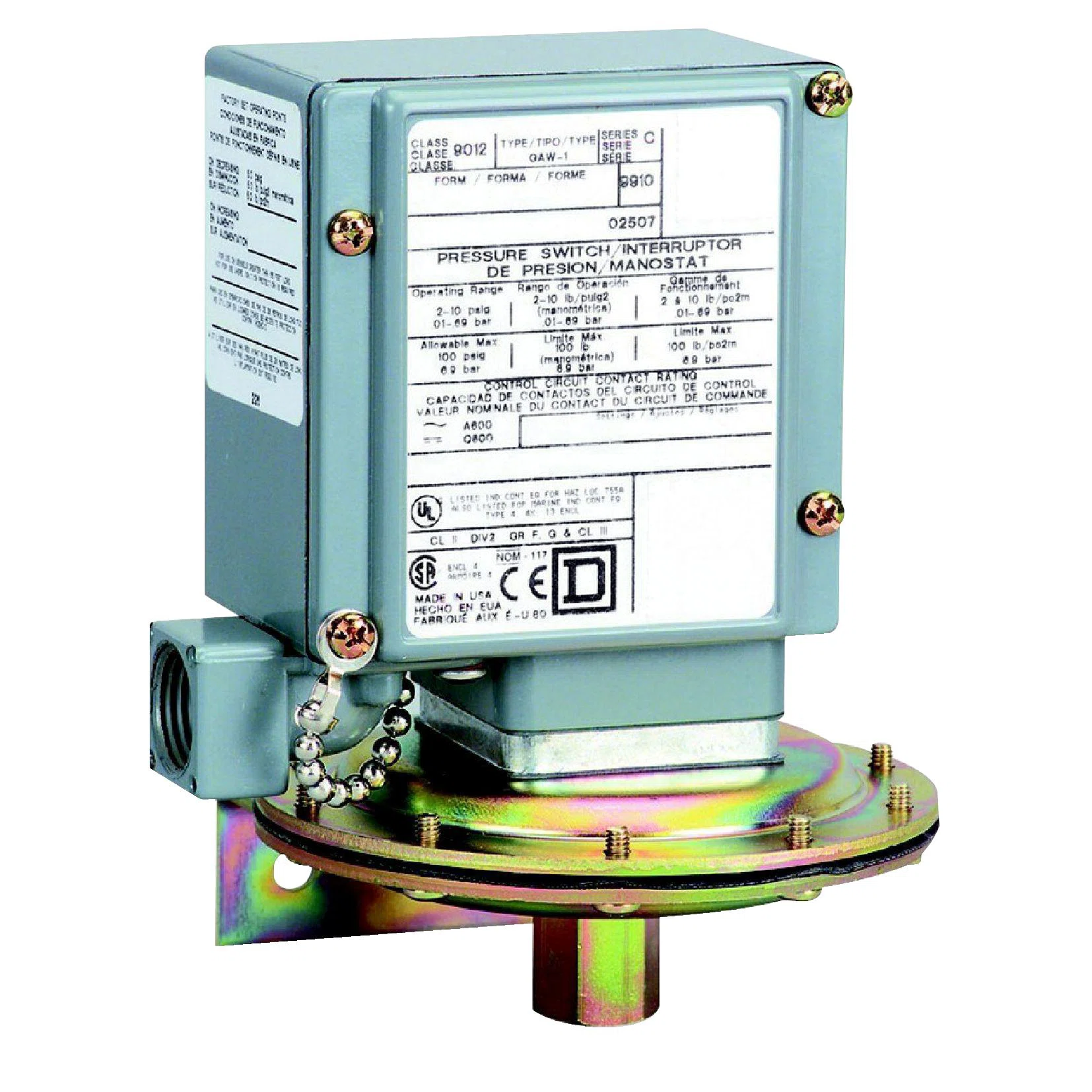

Pressure switch 9012G, adjustable scale, 2 thresholds, 0.2 to 10 PSIG
- MFR:
- Schneider Electric
- MFR #:
- 9012GAW1
- UPC:
- 785901025078
- Item #:
- 378461

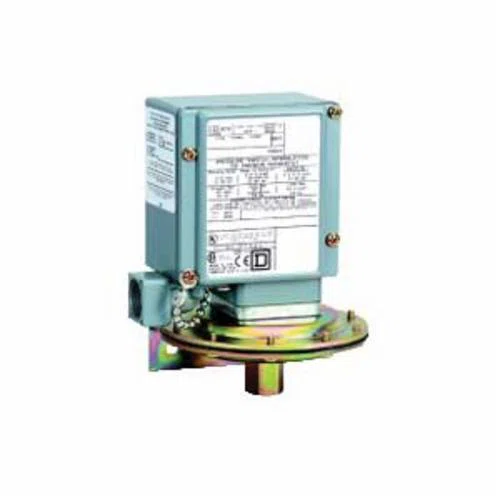

Pressure switch 9012G, adjustable scale, 2 thresholds, 0.2 to 10 PSIG
- MFR #:
- 9012GAW1
- UPC:
- 785901025078
- Item #:
- 378461
The 9012G pressure switches are UL listed and CSA certified as industrial control equipment. They are used to interface pneumatic or hydraulic systems with electrical control systems by opening or closing electrical contacts in response to pressure changes in the system. They have outstanding repeatability and drift performance. Their efficient design uses durable, low mass components for excellent performance under heavy duty vibration and shock conditions.
Manuals & Documentation
Features
- High shock-resistance
- High set-point stability
- Internal or external range adjustment
- No drain line required
- Dual numerical range scale (psi and kPa)
- Nitrile diaphragms and zinc-plated steel flanges are standard
- Diaphragms of FKM fluorocarbon or ethylene propylene are available as well as stainless steel flanges
- NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts
- Hydraulic oil (-40 to 250 deg F), non-corrosive liquids, air, non-corrosive gas controlled fluid
- 1/4 in 18 NPTF conforming to UL 508 fluid connection
- Regulation between 2 thresholds, adjustable scale
- 4 screw terminal block
- Screw clamp terminals, 22 to 12 AWG electrical connection
- Zinc plated steel flange
- Nitrile (Buna-N) diaphragm
- Flange mounting, 10 A/480 VAC
- Die cast aluminum alloy 380, 120 operating cycles/min (maximum)
- 1/2 in NPT conduit entrance cable entry
- Water, dust, oil and corrosion-resistant (indoor/outdoor) environmental conditions
| Manufacturer Part Number | 9012GAW1 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901025078 |
| EAN | 0785901025078 |
| Country Of Origin | MX |
| Dimensions | 5.05 in W x 4.56 in D x 6.24 in H |
| Enclosure Type | NEMA 4/4X/13 |
| Housing Material | Aluminum |
| Series | 9012G |
| Temperature Rating | -10 to 185 deg F |
| Type | Electromechanical |
| Alternative Part Number | 8152792 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | RoHS Compliant | UL E12442 CCN NOWT | CSA Class 3218 02 LR26817 | CE Marked | IEC Rated | PPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Application | Compressed Air Systems, HVAC Equipment, Chillers, Pumping Systems, Machine Tools, Stamping Presses, Automatic Grinders, Welders, Process Equipment, Molding Machines, Indoor/Outdoor and General Purpose Applications and Regulation Between 2 Thresholds |
| Connection Type | NPT Conduit/Screw Clamp |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 6 A at 120 V AC/0.27 A at 250 V DC |
| Diaphragm Material | Nitrile |
| Differential | 0.6 to 2 psi |
| Maximum Pressure | 100 psi |
| Operating Cycles | 120 cpm |
| Pressure Rating | 0.2 to 10 psi |
