Appleton

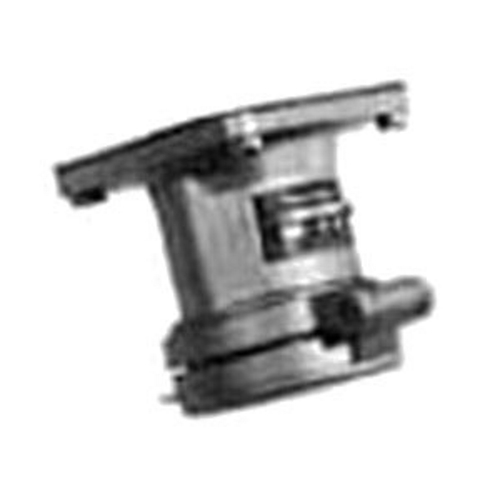

ADR15034 Powertite ADR 3-Phase Grounding Style 2 Pin and Sleeve Receptacle With Spring Door and Screw Cover, 600/250 V AC/V DC, 150 A, 4 Poles, 3 Wires

MFR:
Appleton Electric
MFR #:
ADR15034
UPC:
781381149969
Item #:
378413

Powertite Grounding Style 2 Receptacle, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2 - 2/0 AWG (Building And Extra Flex), Amperage Rating: 150 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfre

Manuals & Documentation

Features

  • Discontinued
Catalog Number ADR15034
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 150
Application For ACP15034CD And ACP15034DE Clamping Ring Plugs
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Box
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 3
Phase 3
Special Features Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 0.525 IN; Do not disconnect under load; Receptacle is NEMA 4X rated when screw cap is closed when the receptacle is not in use; Weatherproof, spring door, copper with beryllium copper springs
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381149969
GTIN 00781381149969
Item Type Grounding Style 2 Receptacle
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 2 - 2/0 AWG (Building And Extra Flex)
