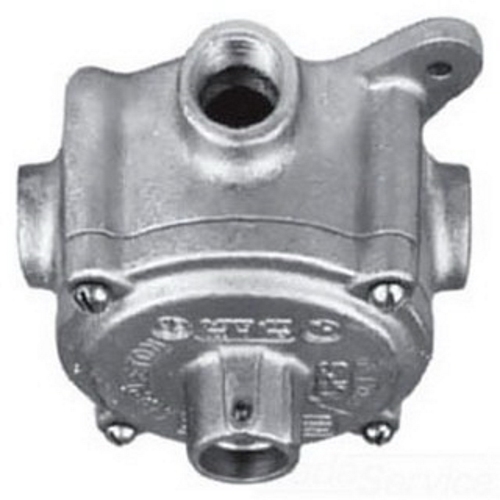

Cpu Unilet W34HUB Cover
- MFR:
- Appleton Electric
- MFR #:
- CPU20-75
- UPC:
- 781381299596
- Item #:
- 378232
UNILETS CPU Universal Outlet Box With Hub Cover, Number Of Outlet: 4, Material: Malleable Iron, Size: 1/2 - 3/4 IN, Cable Entry: (4) 1/2 - 3/4 IN Hub, Cubic Capacity: 21 CU-IN, Knockouts: No, Cover Opening: 3.81 IN, Fixture Stem Size: 3/
Manuals & Documentation
| Catalog Number | CPU20-75 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit |
| Cable Entry | (4) 1/2 - 3/4 IN Hub |
| Cubic Capacity | 21 CU IN |
| Knockouts | No |
| Material | Malleable Iron |
| Special Features | Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with cover, four threaded universal 3/4 IN hubs, four 3/4 IN to 1/2 IN reducers and three 1/2 IN close-up plugs; General purpose wiring; Serve as mounting outlets for lighting fixtures when used with hub cover; Wide, accurately ground explosion-proof mating surfaces; Smooth, rounded integral bushing in each hub type box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Standard | UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381299596 |
| GTIN | 00781381299596 |
| Item Type | CPU Universal Outlet Box With Hub Cover |
| Length | 12.5000 |
| Length UOM | Inch |
| Width | 11.2000 |
| Width UOM | Inch |
| Height | 1.2000 |
| Height UOM | Inch |
| Weight | 6.010 |
| Weight UOM | Pounds |
| Size | 1/2 - 3/4 |
