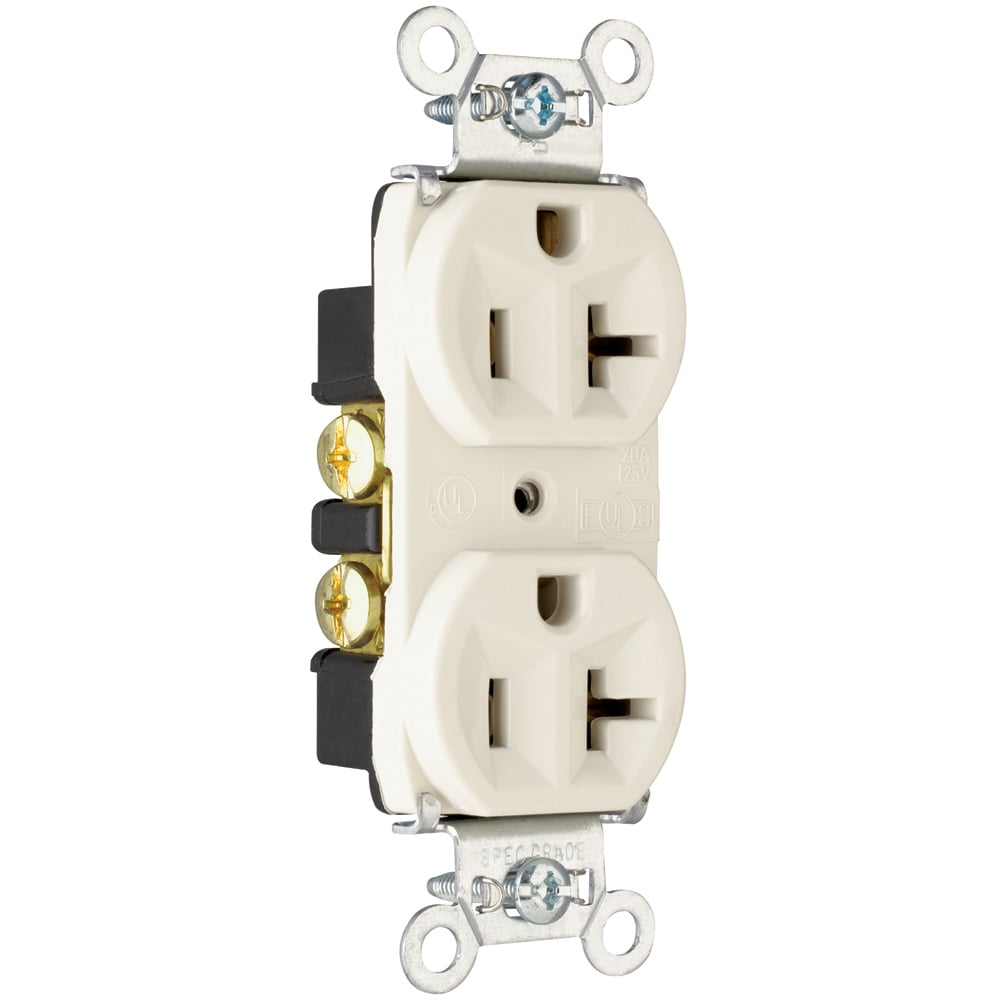

5362LA 20 Amp 125V Hard Use Spec-Grade Duplex Receptacle, Back and Side Wire, Light Almond
- MFR:
- Legrand-Pass & Seymour
- MFR #:
- 5362LA
- UPC:
- 785007194395
- Item #:
- 376647
5362LA 20 Amp 125V Hard Use Spec-Grade Duplex Receptacle, Back and Side Wire, Light Almond
- MFR #:
- 5362LA
- UPC:
- 785007194395
- Item #:
- 376647
eHard Use Spec Grade Duplex Receptacle Back and Side Wire 20A 125V Yellow
| Catalog Number | 5362LA |
| Manufacturer | Legrand-Pass & Seymour |
| Brand | Legrand-Pass & Seymour |
| Warranty Description | 1-Year Limited Warranty |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial |
| Color | Light Almond |
| Connection | Back and side wire |
| Material | Nylon |
| Mounting | Wall |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Special Features | Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. 8 hole internal screw-pressure-plate back wire terminals accept #14 – #10 AWG solid or stranded copper or copper-clad conductors. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground. |
| Standard | UL498, CSA C22.2 No. 42 |
| UPC | 785007194395 |
| GTIN | 00785007194395 |
| Item Type | Spec Grade Receptacle, Hard Use |
| Size | 1.322 L x .780 W x 3.281 H |
| Temperature Rating | -40° - 60° C |
| Voltage Rating | 125 |
| Wire Size | 14 - 10 AWG |
