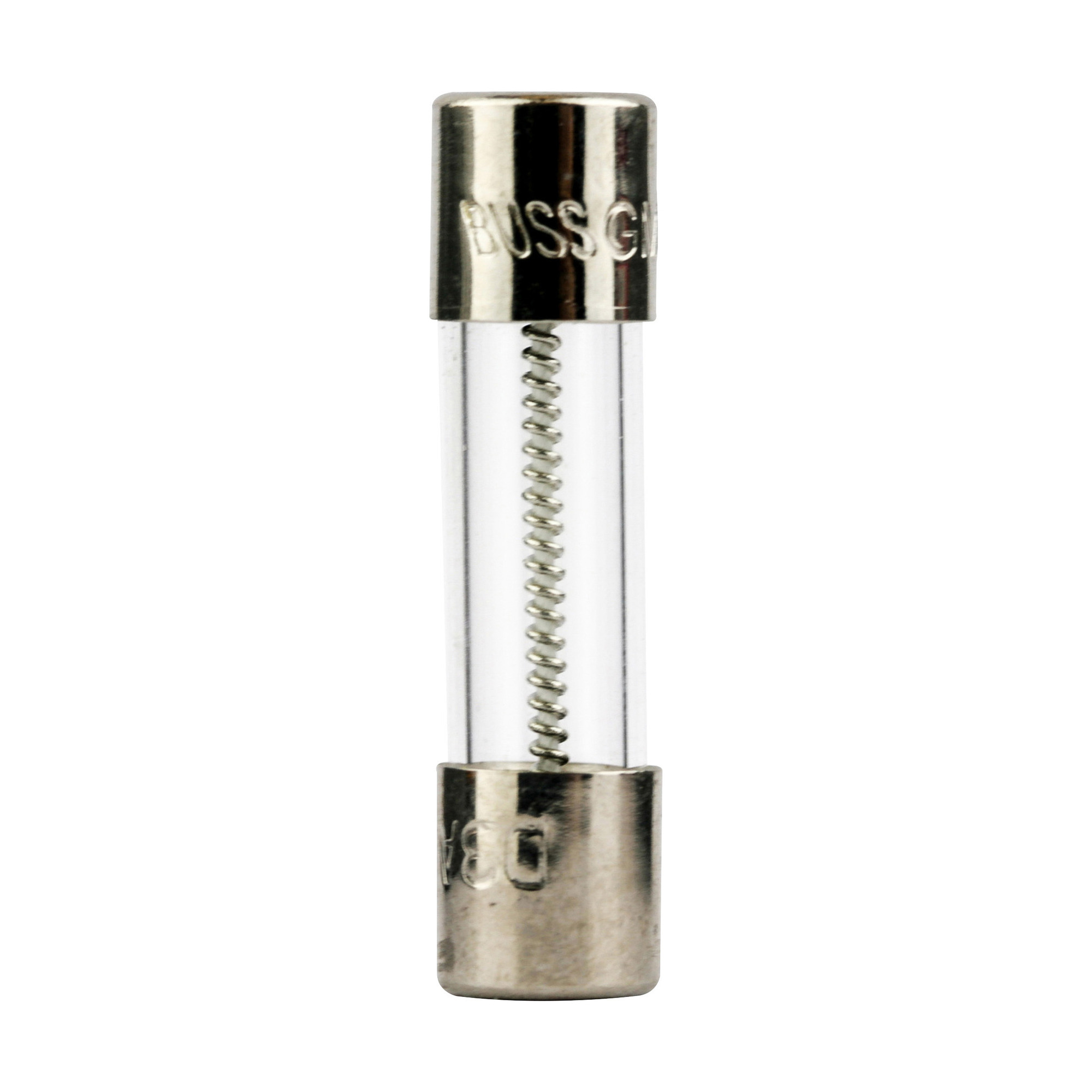

GMD-3-R Low Breaking Small Dimension Time Delay Fuse With Nickel Plated Brass End Caps, 3 A, 250 V AC, 100 A/10 kA Interrupt, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- GMD-3-R
- UPC:
- 051712657907
- Item #:
- 375451
GMD-3-R Low Breaking Small Dimension Time Delay Fuse With Nickel Plated Brass End Caps, 3 A, 250 V AC, 100 A/10 kA Interrupt, Cylindrical Body
- MFR #:
- GMD-3-R
- UPC:
- 051712657907
- Item #:
- 375451
| Catalog Number | GMD-3-R |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 0.125 |
| Application | Electronic Circuits |
| Connection | Ferrule End X Ferrule End |
| Indicator | Non Indicating |
| Interrupt Rating | 10 kA |
| Material | Brass |
| Response Time | 2 Min Maximum At 200% |
| Special Features | Low Breaking Capacity, Interrupt Rating 100 Amp at 250 Vac, 10000 Amp at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant |
| Standard | UL 248-14, CSA, CE, PSE/JET |
| UPC | 051712657907 |
| GTIN | 00051712657907 |
| Item Type | Electronic, Time Delay |
| Length | 0.25 |
| Length UOM | Inch |
| Width | 0.197 |
| Width UOM | Inch |
| Height | 0.788 |
| Height UOM | Inch |
| Weight | 0.005 |
| Weight UOM | Pounds |
| Size | 5.20 mm Diameter X 20.00 mm Height |
| Voltage Rating | 250 V |
