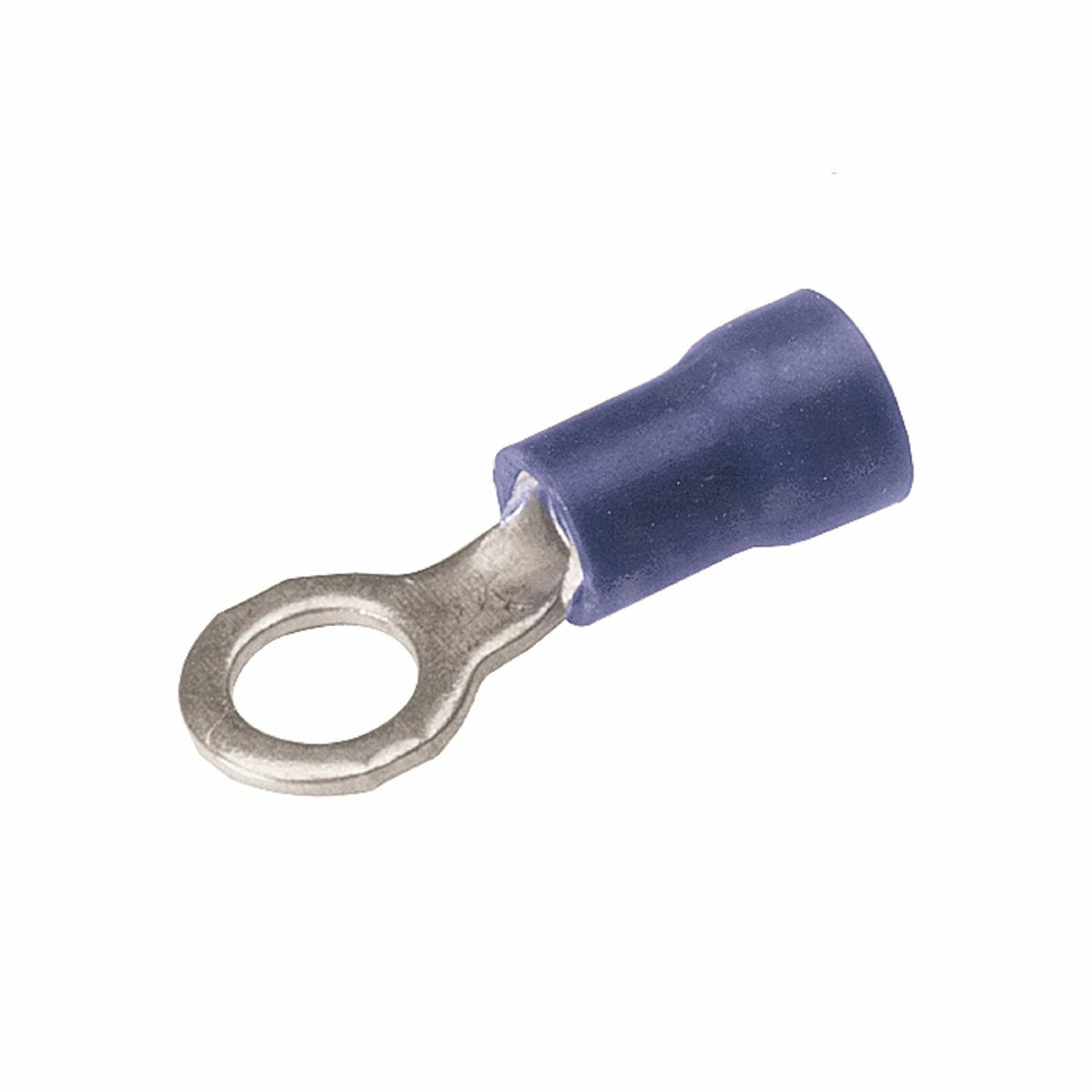

TP146 TP Series Insulated Ring Tongue Terminal, 16 to 14 AWG Conductor, 0.74 in L, Shrouded Barrel, Electrolytic Copper, Blue
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- TP146
- UPC:
- 781810712443
- Item #:
- 375218
TP146 TP Series Insulated Ring Tongue Terminal, 16 to 14 AWG Conductor, 0.74 in L, Shrouded Barrel, Electrolytic Copper, Blue
- MFR #:
- TP146
- UPC:
- 781810712443
- Item #:
- 375218
Manuals & Documentation
| Catalog Number | TP146 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Commercial And Light Duty Industrial Control And Power Circuit Applications |
| Insulation | Y |
| Material | Copper |
| Special Features | Features: VINYLUG Type TP Is Designed For Commercial And Light Duty Industrial Control And Power Circuit Applications, Supplied With An Expanded Polyvinyl Chloride (PVC) Insulation Shroud, Many Tongue Variations And Rated 600 V Makes TP Terminals Versatile And Economical, 105 DEG C Maximum, Expanded Insulation Support Accepts Standard And Large Wire Diameters: Lowers Inventory Requirements, Permits Greater Flexibility And Provides Insulation Support, Funnel Entry: Easy Wire Insertion, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove Serrations In The Inner Barrel: Provides Added Holding Strength And Better Conductivity, Electro-Tin Plated: Provides Durable Long-Lasting Corrosion Resistance, Insulation Diameter (maximum): 0.18 IN, Tape Mounted Catalog Number: BA14E6M, Bulk Catalog Number: BA14E6, Temperature Rating: 105 DEG C Maximum, Installation Tool: Plier Type: Y10D, Y10-22 Tool, Ratchet: MR8-89-1, MR15, MR8-G96 Tool, Color Code: Blue, Wire Strip Length: 13/64 IN, Finish: Electro-Tin Plated, Wire Insulation Grip: No |
| Standard | UL467 |
| UPC | 781810712443 |
| GTIN | 00781810712443 |
| Item Type | Ring Tongue |
| Cross Reference Products | TV14-6R-L |
