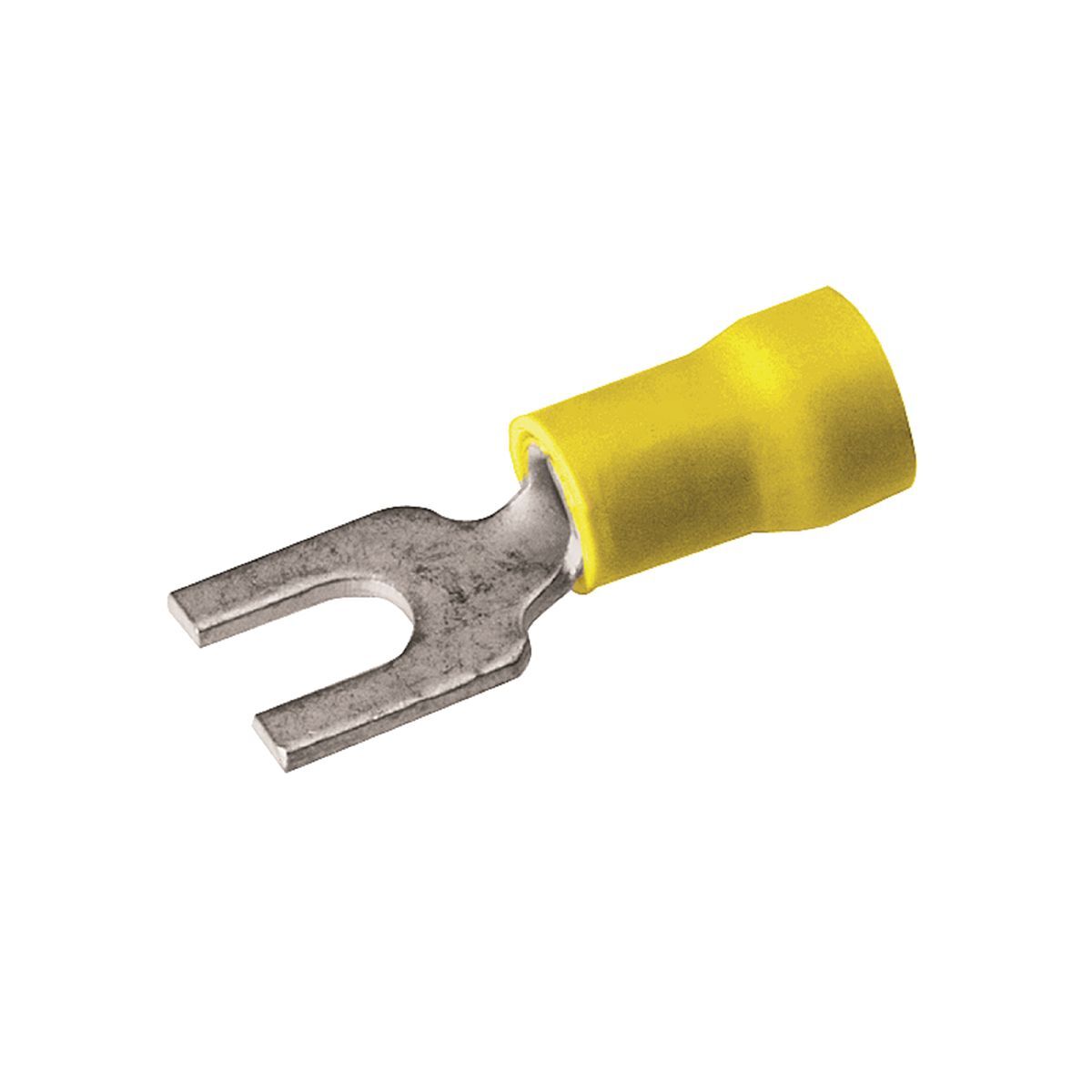

TP1010F Type TP-F Smooth Entry Fork Tongue Terminal, 12 to 10 AWG Conductor, 1.07 in L, Copper, Yellow
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- TP1010F
- UPC:
- 781810710883
- Item #:
- 375213
TP1010F Type TP-F Smooth Entry Fork Tongue Terminal, 12 to 10 AWG Conductor, 1.07 in L, Copper, Yellow
- MFR #:
- TP1010F
- UPC:
- 781810710883
- Item #:
- 375213
Manuals & Documentation
| Catalog Number | TP1010F |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Commercial And Light Duty Industrial Control And Power Circuit Applications |
| Insulation | Y |
| Material | Copper |
| Special Features | Features: The Type TP-F Is A Fork Tongue Variation Of The TP Design And Makes Installation Easier, 600 V Maximum, 105 DEG C Max, Fork Tongue Design: Faster Installation-Screw Needs Only To Be Loosened For Termination, Tape Mounted Catalog Number: BA10EF10M, Bulk Catalog Number: BA10EF10, Insulation Diameter (maximum): 0.26 IN, Temperature Rating: 105 DEG C Maximum, Installation Tool: MR15, M8ND Tool With N10ET-23 Die, Color Code: Yellow, Wire Strip Length: 19/64 IN, Finish: Electro-Tin Plated, Wire Insulation Grip: No |
| UPC | 781810710883 |
| GTIN | 00781810710883 |
| Item Type | TP-F |
| Cross Reference Products | TV10-10F-XV |
