Appleton

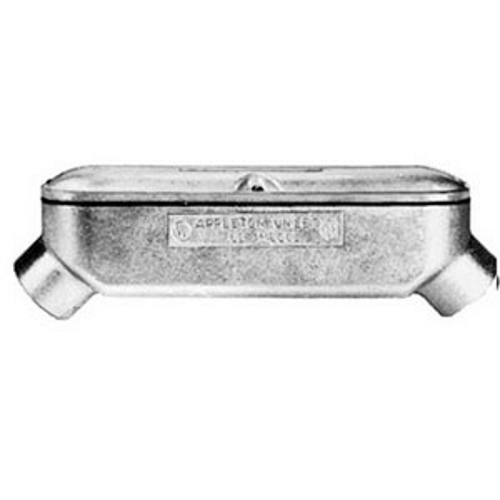

Unilet; NEC 6X Series Mogul Type LB Conduit Outlet Body; 4 Inch, Aluminum, Epoxy Powder Coated

MFR:
Appleton Electric
MFR #:
BUB400-A
UPC:
781381474481
Item #:
374697

Mogul UNILETS Type UB NEC 6X Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 4 IN, Length: 30.88 IN, Width: 5.63 IN, Height: 10.31 IN, Material: Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1, For Use With Rigid Metal Conduit And IMC

Manuals & Documentation
Catalog Number BUB400-A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Metal Conduit And IMC
Connection Tapered Female Threaded
Finish Epoxy Powder Coat
Hub Size 4 IN
Material Aluminum
Special Features Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2); Bending space requirement: These moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) table; Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 960 CU-IN
Standard UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381474481
GTIN 00781381474481
Item Type Type UB NEC 6X Conduit Outlet Body With Assembled Cover And Gasket
Length 30.88
Length UOM Inch
Width 5.63
Width UOM Inch
Height 10.31
Height UOM Inch
