BURNDY

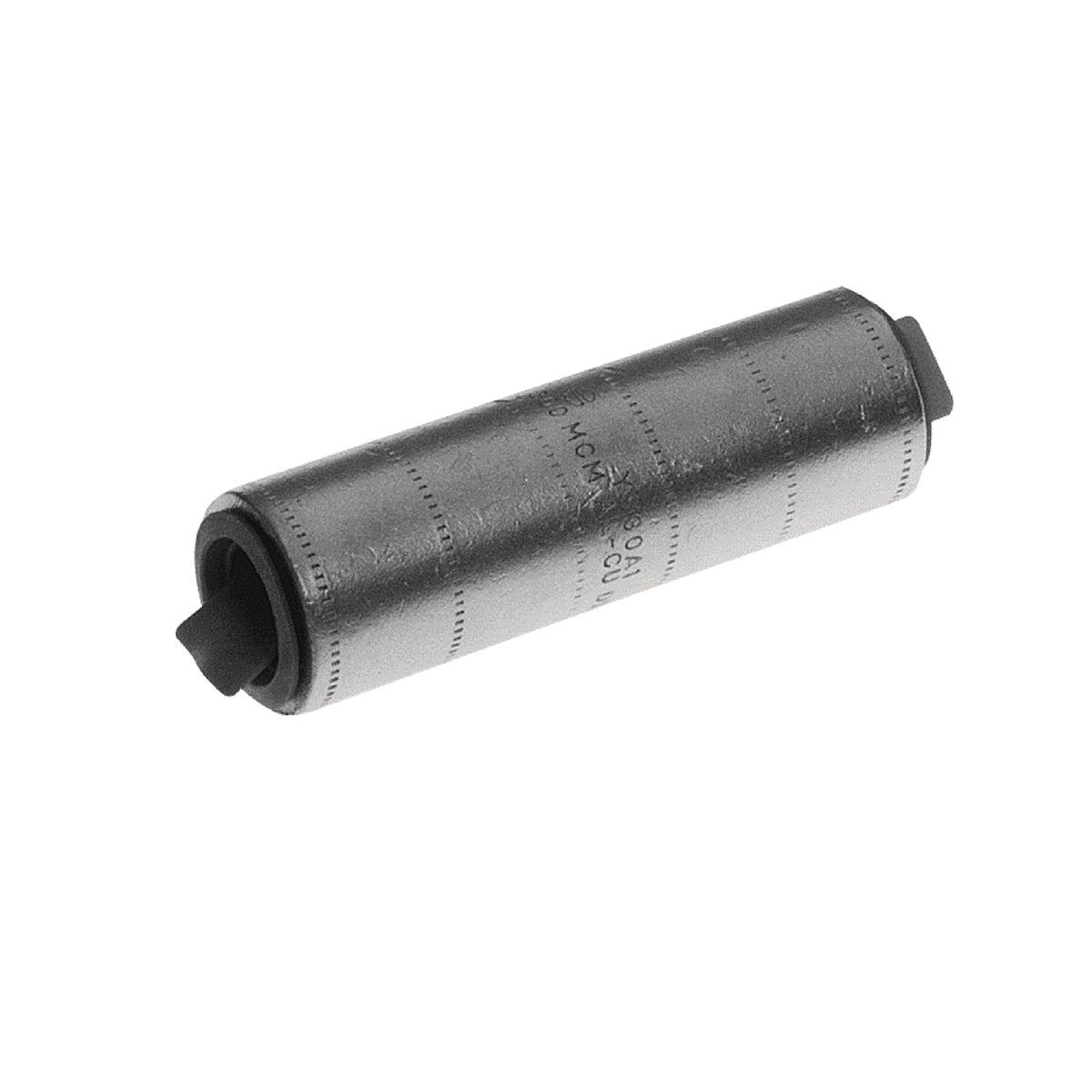

YS39A1 Type YS-A Standard Barrel Compression Butt Splice, 700 to 750 kcmil Conductor, 5.26 in L, Long/Standard Barrel, Aluminum, Yellow

MFR:
Burndy, a Hubbell affiliate
MFR #:
YS39A1
UPC:
781810766026
Item #:
374398
Manuals & Documentation
Catalog Number YS39A1
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Splice
Finish Tin-Plated
Material ALUMINUM
Special Features Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides High-Conductivity/Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Entry, Solid Center Stop And Prefilled With PENETROX Oxide Inhibiting Compound: Provides Stop For Proper Conductor Insertion And An Aid In Forcing The PENETROX Between The Individual Wire Strands, Color-Coded End Caps: Provides Easy Wire Size And Die Code Identification Plus Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage, Connector Is Clearly Marked With Wire Size, Die Index And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation, Proper Compression Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, UL Listed for Aluminum only, Color Code: Yellow, Dieless Tools (number Of Crimps): Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Die Index: 936 Element A, Conductor Type: Stranded Aluminum Or Copper, Wire Strip Length: 2-7/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U39ART-2 Die, (4), Y46 Tool, U39ART-2 Die With PUADP-1 Adapter, (4)
Standard UL 486A-486B
UPC 781810766026
GTIN 00781810766026
Item Type YS-A, Standard Barrel
Temperature Rating 194
Voltage Rating 35
Cross Reference Products 60578
