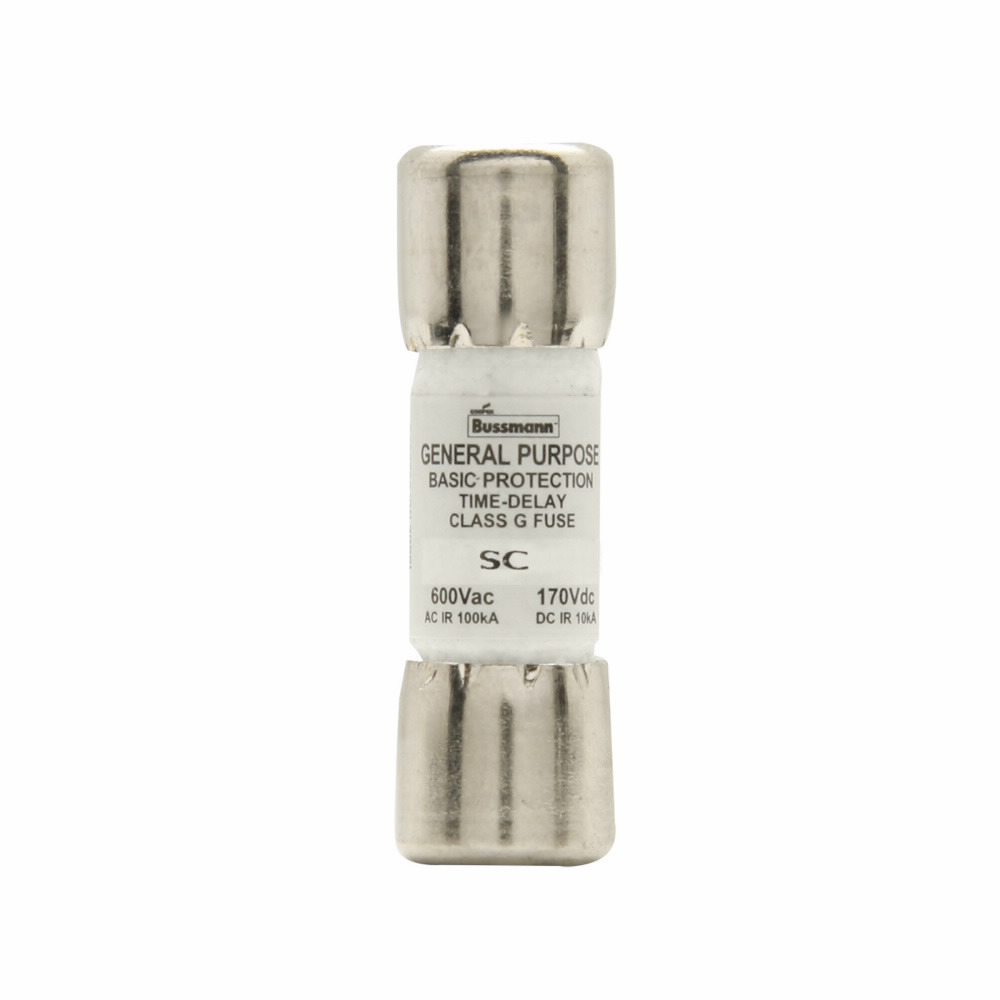

SC-3 Current Limiting Fast Acting Time Delay General Purpose Fuse, 3 A, 600 V AC/170 V DC, 10/100 kA Interrupt, G Class, Cartridge Body
- MFR:
- Eaton Bussmann
- MFR #:
- SC-3
- UPC:
- 051712250030
- Item #:
- 372082
SC-3 Current Limiting Fast Acting Time Delay General Purpose Fuse, 3 A, 600 V AC/170 V DC, 10/100 kA Interrupt, G Class, Cartridge Body
- MFR #:
- SC-3
- UPC:
- 051712250030
- Item #:
- 372082
Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing
Manuals & Documentation
| Catalog Number | SC-3 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule End X Ferrule End |
| Interrupt Rating | 100000 Amp (RMS Symmetrical), 10000 Amp (DC) |
| Special Features | Rejection Style |
| Standard | RoHS Compliant |
| UPC | 051712250030 |
| GTIN | 00051712250030 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 0.41 In Diameter X 1.31 In Length |
| Voltage Rating | 600 Vac, 170 Vdc |
