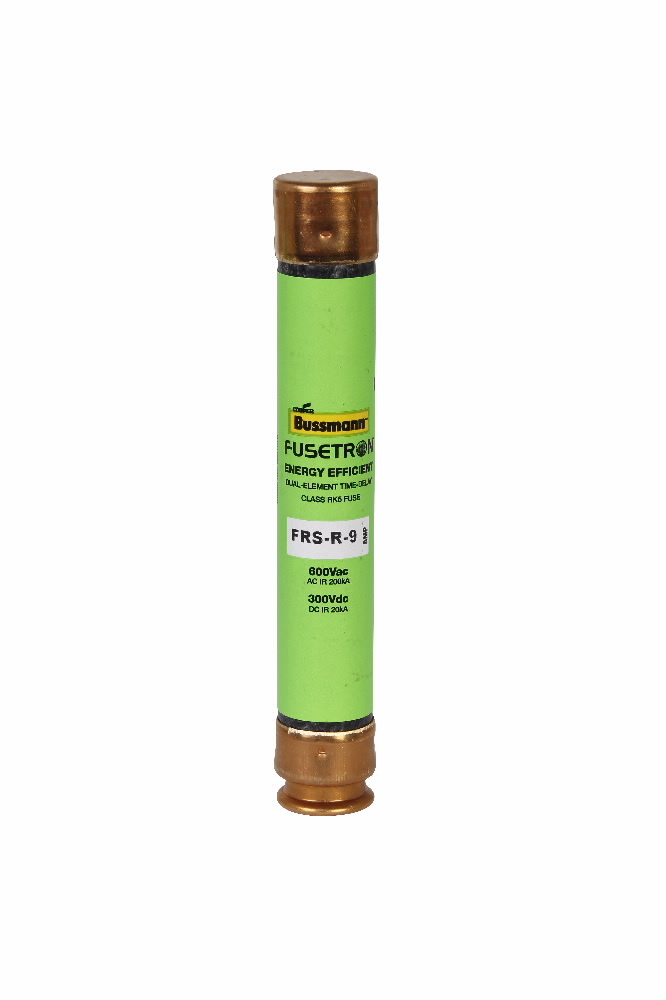

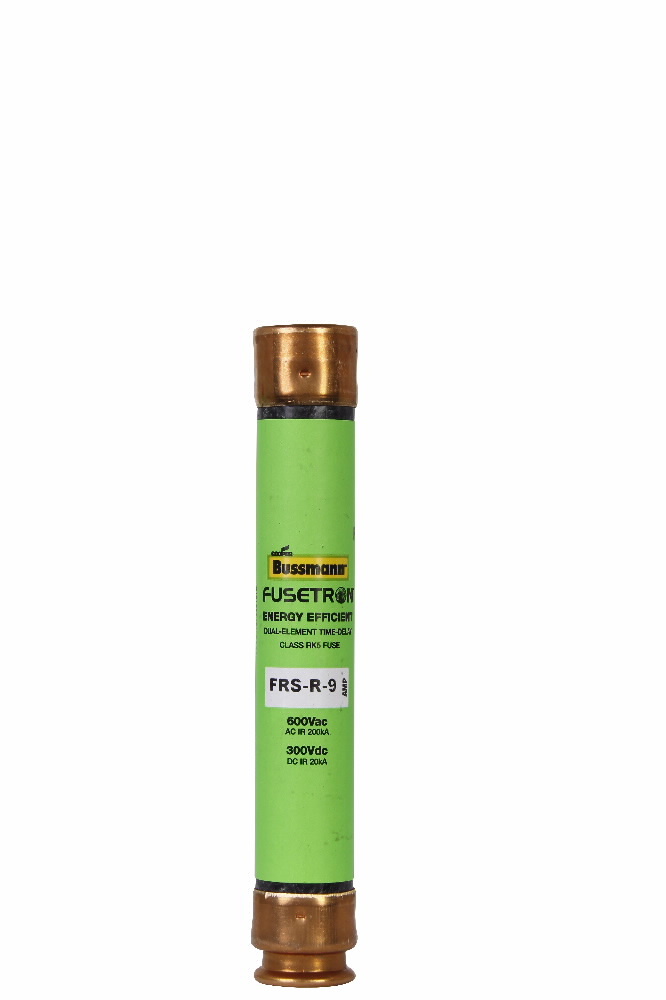

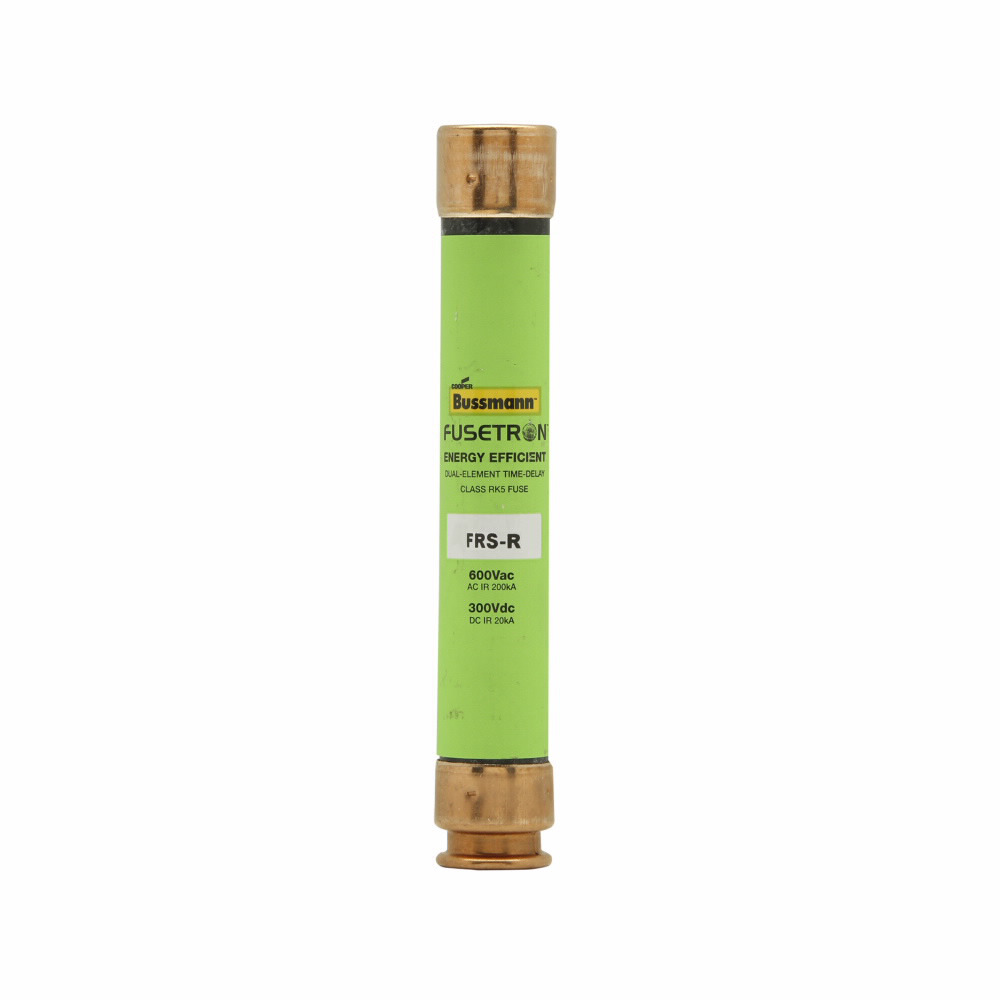

FRS-R-9 Fusetron Current Limiting Renewable Time Delay Fuse, 9 A, 600 V AC/300 V DC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- FRS-R-9
- UPC:
- 051712508278
- Item #:
- 372060
FRS-R-9 Fusetron Current Limiting Renewable Time Delay Fuse, 9 A, 600 V AC/300 V DC, 20/200 kA Interrupt, RK5 Class, Cylindrical Body
- MFR #:
- FRS-R-9
- UPC:
- 051712508278
- Item #:
- 372060
Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500 of rated current (8 seconds for 1/10-30A sizes).
Manuals & Documentation
| Catalog Number | FRS-R-9 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 9 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 200 kAIC at 600 Vac|20 kAIC at 300 Vdc |
| Response Time | 10 S at 500% |
| Special Features | Renewable |
| Standard | CE Marked |
| UPC | 051712508278 |
| GTIN | 00051712508278 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 0.81 In Diameter X 5.00 In Length |
| Voltage Rating | 600 Vac, 300 Vdc |
