PCSB4-2S-12Y Pan-Lug 2-Port Single Sided Multi-Tap Connector, 14 to 4 AWG Stranded, 14 to 10 AWG Aluminum/Copper/Solid Solid/Stranded Conductor, Screw Installation, Aluminum
- MFR:
- Panduit
- MFR #:
- PCSB4-2S-12Y
- UPC:
- 074983597550
- Item #:
- 371685
PCSB4-2S-12Y Pan-Lug 2-Port Single Sided Multi-Tap Connector, 14 to 4 AWG Stranded, 14 to 10 AWG Aluminum/Copper/Solid Solid/Stranded Conductor, Screw Installation, Aluminum
- MFR #:
- PCSB4-2S-12Y
- UPC:
- 074983597550
- Item #:
- 371685

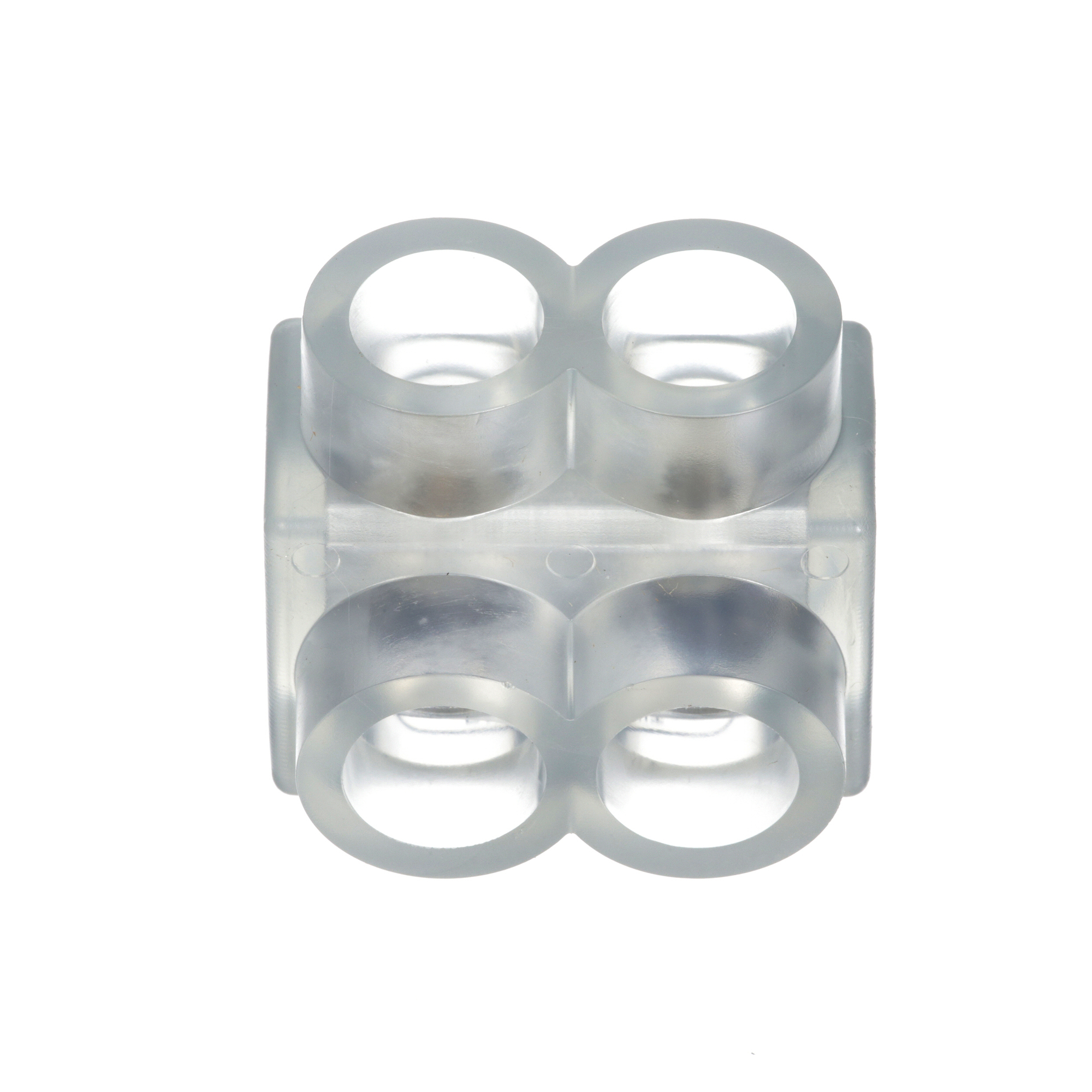

The PCSB4-2S-12Y Multi-Tap Mechanical Connector has a flexible design that can be used as a tap, splice, or dead-end connector. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
| Catalog Number | PCSB4-2S-12Y |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Aluminum or Copper Code Conductors |
| Insulation | Clear PVC |
| Material | Aluminum |
| Standard | UL listed and CSA certified for use up to 600V & Temperature Rated to 90 Degrees C |
| UPC | 074983597550 |
| GTIN | 00074983597550 |
| Item Type | Single-Sided Multi-Tap Connector |
| Voltage Rating | 600 |
| Cross Reference Products | ABBInstall AMTC4|Burndy 1PLD42|Morris 97102|Nsi IT-4A|Panduit PCSB4-2S-12Y|PennUnion 1PB-NA4-2S|ThomasBett AMTC4 |
