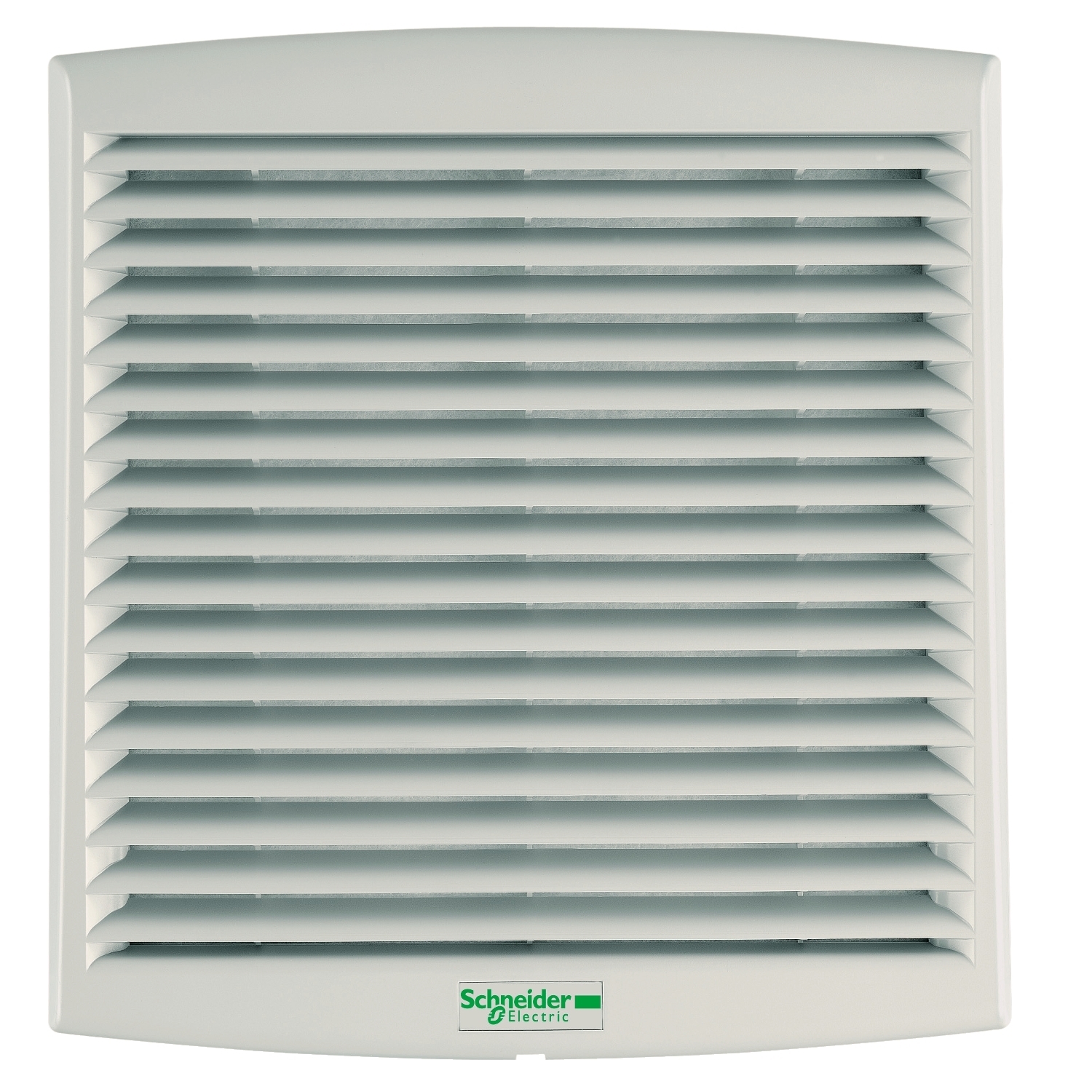

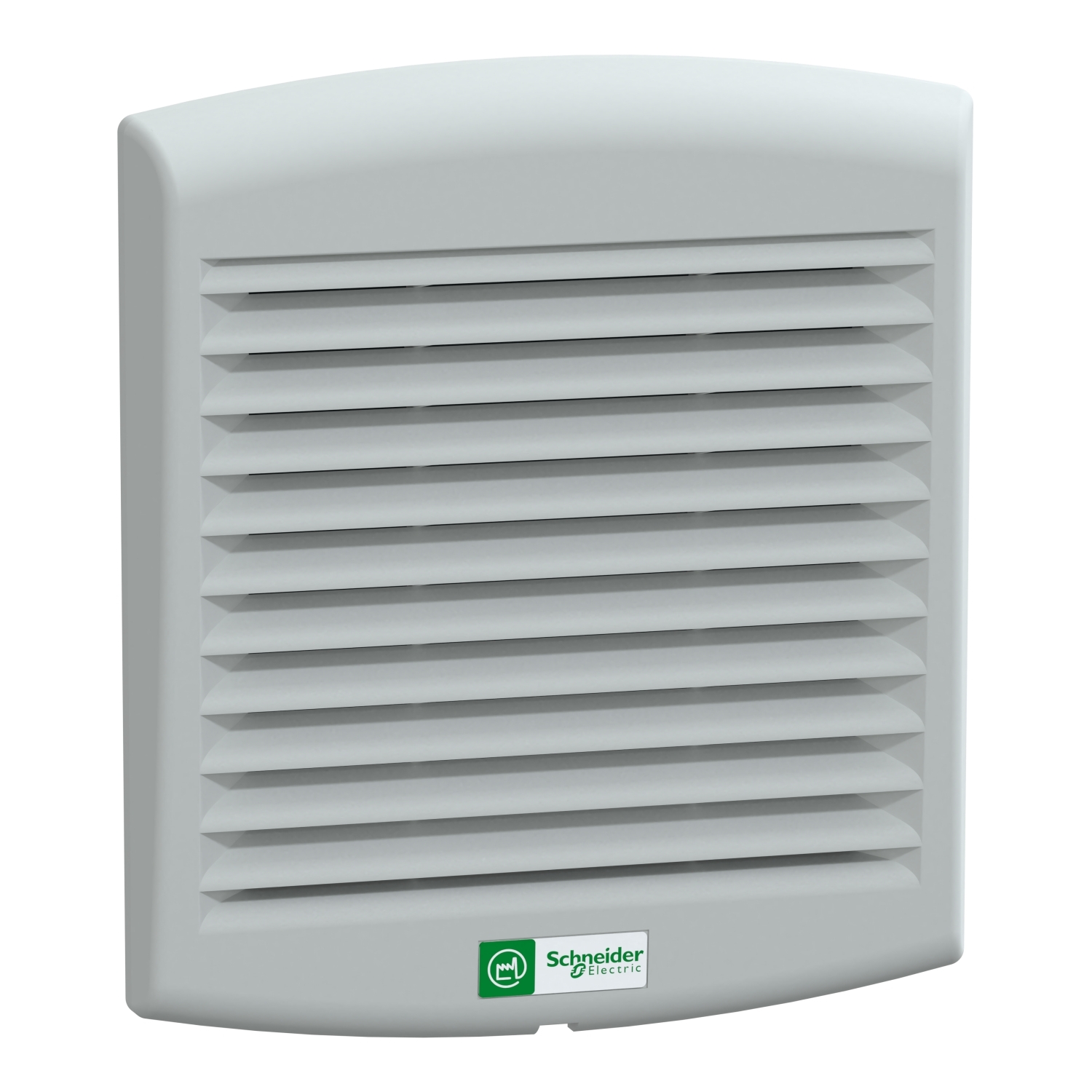

NSYCVF85M24DPF ClimaSys Self-Extinguishing Forced Ventilation Fan, 24 V DC, 0.3 A, 7.6 W Power Rating, 85 cu-m/hr Air Flow, IP54 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- NSYCVF85M24DPF
- Item #:
- 369980
NSYCVF85M24DPF ClimaSys Self-Extinguishing Forced Ventilation Fan, 24 V DC, 0.3 A, 7.6 W Power Rating, 85 cu-m/hr Air Flow, IP54 Enclosure
- MFR #:
- NSYCVF85M24DPF
- Item #:
- 369980
ClimaSys CV Axial motor ventilator. 24V DC 50Hz or 60Hz. 7.6W 50 Hz. Free flow rate with standard filter of 80 m3/h at 50 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Manuals & Documentation
| Catalog Number | NSYCVF85M24DPF |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Construction | 1 axial motor;2 protective grille on the front and rear surfaces;1 filter front of axial motor;1 outlet grille front;1 cut-out template;1 power cord |
| Input Voltage | 24 V DC |
| Material | Outlet grille injected thermoplastic (ASA PC) |
| Special Features | Cable |
| Standard | IP54 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10178365&lang=en-us |
| GTIN | 03606480151224 |
| Item Type | Fan |
| Width | External: 150 mm |
| Height | External: 170 mm |
| Depth | External : 62 mm |
