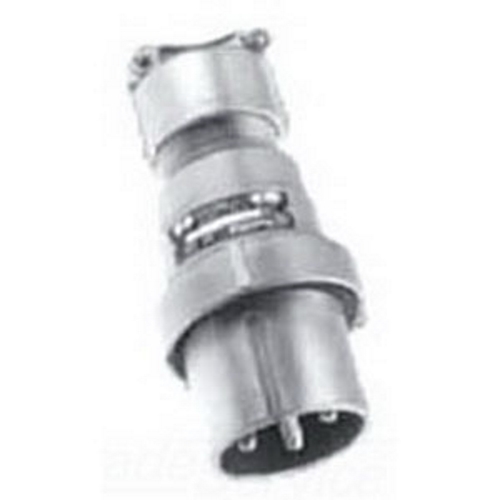

3-Pole Clamping Ring Plug, 600 VAC, 250 VDC, 60 A, 3-Wire
- MFR:
- Appleton Electric
- MFR #:
- AEP6352
- UPC:
- 781381136259
- Item #:
- 369978
3-Pole Clamping Ring Plug, 600 VAC, 250 VDC, 60 A, 3-Wire
- MFR #:
- AEP6352
- UPC:
- 781381136259
- Item #:
- 369978
AE Series Grounding Style 1 Clamping Ring Plug, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 8 - 4 AWG, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC, 250 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Connection: Pressure Wire Terminal, Finish: Epoxy Powder Coat, Plug Cable Diameter: 1 - 1-5/16 IN, Standard: UL 1682, UL 1686, For AE631, AE637 Receptacles And APR6352 Connector Body
Manuals & Documentation
Features
- Discontinued
| Catalog Number | AEP6352 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 60 |
| Application | For AE631, AE637 Receptacles And APR6352 Connector Body |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Special Features | Grounding style: shell only; Weatherproof; Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs; Plug with clamp ring has neoprene gasket, ring threads onto screw cap receptacle to provide raintight assembly when properly tightened; Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking; Floating-type plug contacts self-align to receptacle contacts; For welders, generators, compressors, pumps, similar apparatus; Natural finish fiber glass reinforced phenolic insulation blocks |
| Standard | UL 1682, UL 1686 |
| UPC | 781381136259 |
| GTIN | 00781381136259 |
| Item Type | AE Series Grounding Style 1 Clamping Ring Plug |
| Voltage Rating | 600 VAC, 250 VDC |
| Wire Size | 8 - 4 AWG |
