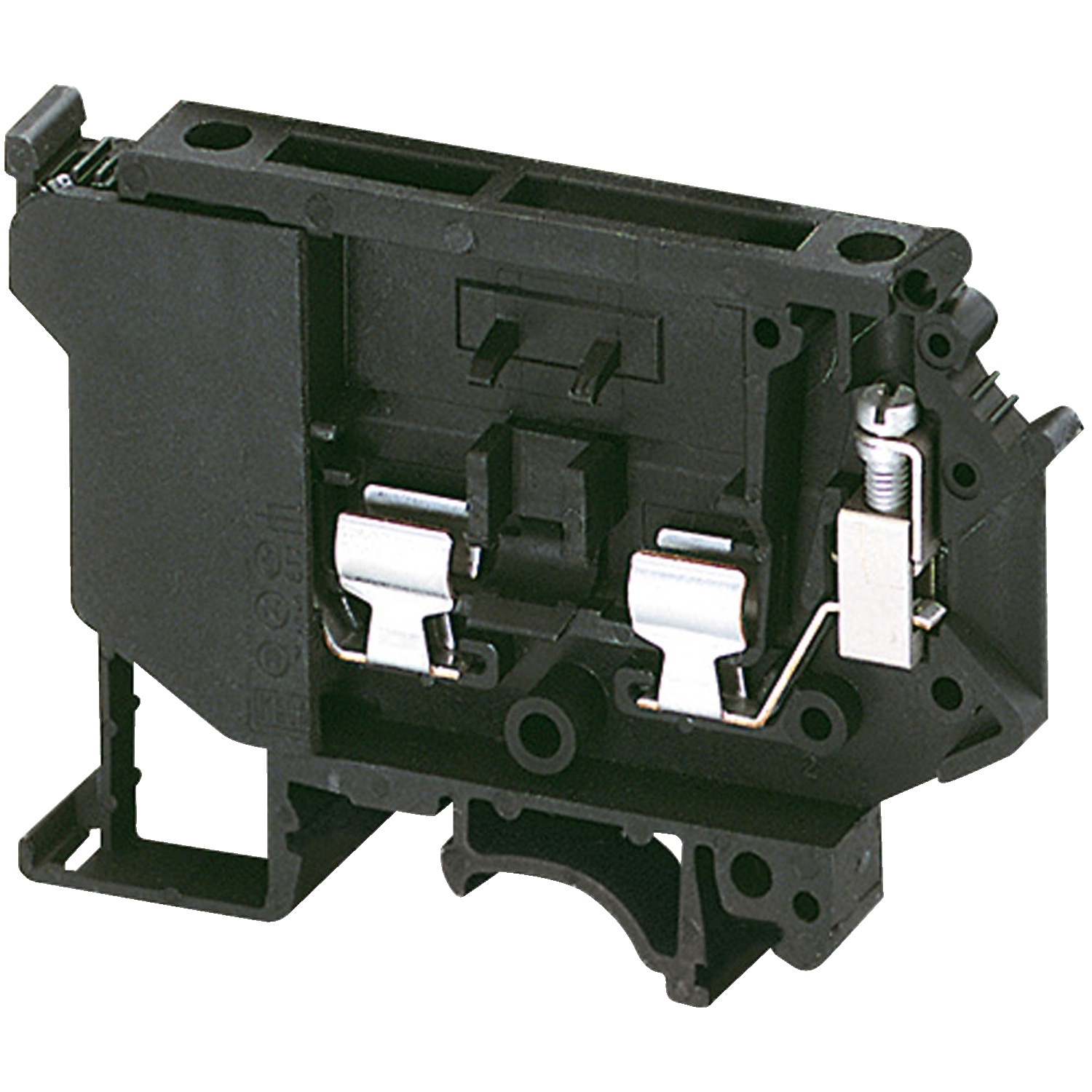

NSYTRV42SF5 Linergy TRV Fused Terminal Block, 500/600 V AC, 6.3/12 A, 0.2 to 4 sq-mm Wire, Clip-Fit Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV42SF5
- Item #:
- 368202
NSYTRV42SF5 Linergy TRV Fused Terminal Block, 500/600 V AC, 6.3/12 A, 0.2 to 4 sq-mm Wire, Clip-Fit Mount
- MFR #:
- NSYTRV42SF5
- Item #:
- 368202
Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC).
Manuals & Documentation
| Catalog Number | NSYTRV42SF5 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Turkey |
| Made in USA | No |
| Application | Protection;5 x 20 mm |
| Color | Black |
| Connection | 1 x screw terminal upstream;1 x screw terminal downstream |
| Material | Polyamide 6/6: insulating case |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403761229&lang=en-us |
| GTIN | 03606480532337 |
| Item Type | Fused disconnect;Terminal block;Spacial enclosures |
