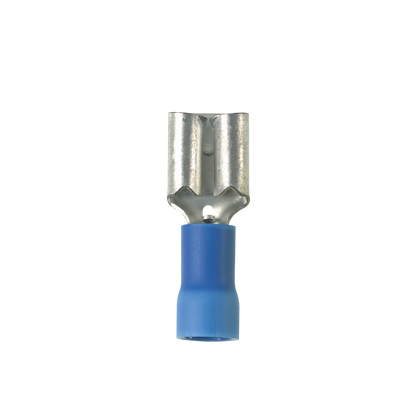

DV14-187B-C Pan-Term Type DV-B Loose Piece Vibration-Resistant Female Disconnect, 16 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Barrel Insulated
- MFR:
- Panduit
- MFR #:
- DV14-187B-C
- UPC:
- 074983460151
- Item #:
- 366989
DV14-187B-C Pan-Term Type DV-B Loose Piece Vibration-Resistant Female Disconnect, 16 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Blue, Barrel Insulated
- MFR #:
- DV14-187B-C
- UPC:
- 074983460151
- Item #:
- 366989
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.187 x 0.032 (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm). It is 0.75 (19.1 mm) long and 0.23 (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
Manuals & Documentation
| Catalog Number | DV14-187B-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel Entry |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983460151 |
| GTIN | 00074983460151 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
