LCC500-12-6 Pan-Lug 2-Hole Compression Lug Connector, 500 kcmil Stranded Copper Conductor, Die Code: P87, 1/2 in Stud, Copper
- MFR:
- Panduit
- MFR #:
- LCC500-12-6
- UPC:
- 074983902651
- Item #:
- 365149
LCC500-12-6 Pan-Lug 2-Hole Compression Lug Connector, 500 kcmil Stranded Copper Conductor, Die Code: P87, 1/2 in Stud, Copper
- MFR #:
- LCC500-12-6
- UPC:
- 074983902651
- Item #:
- 365149

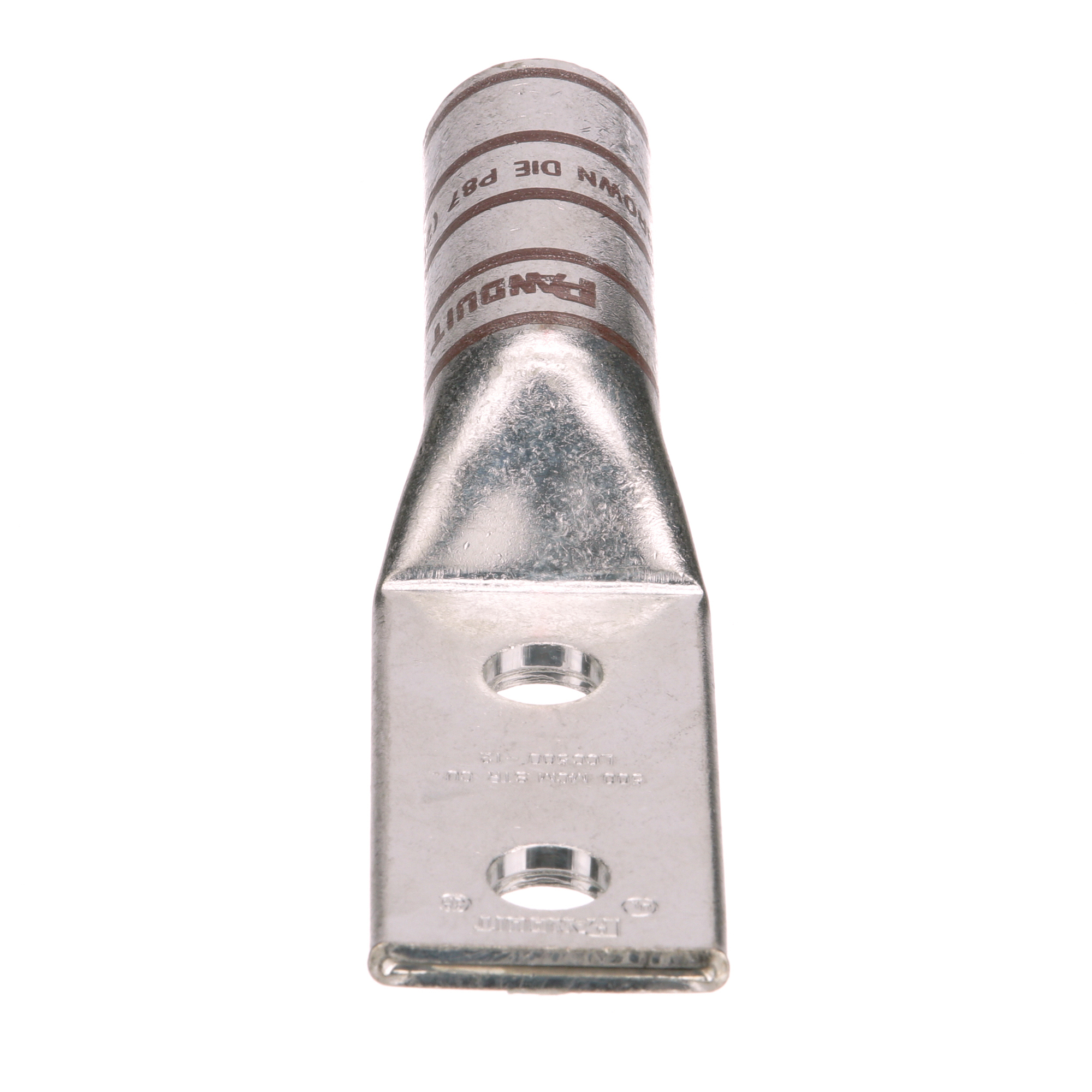

The LCC500-12-6 Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified.
Manuals & Documentation
| Catalog Number | LCC500-12-6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Brown |
| Material | Copper |
| Number of Holes | 2 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UPC | 074983902651 |
| GTIN | 00074983902651 |
| Item Type | Compression Lug |
| Size | 500 kcmil Code |
| Stud Size | 1/2 IN |
