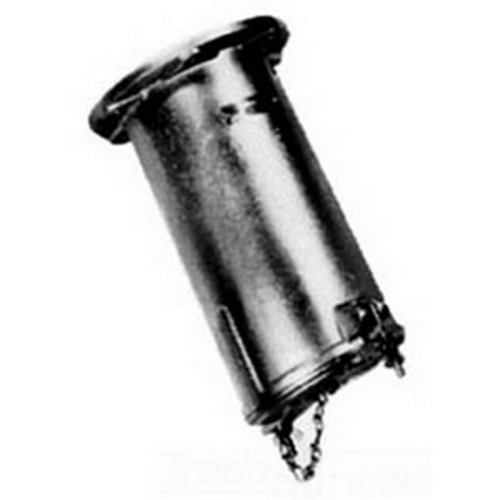

4 Pole 3 Wire Receptacle; 400 Amp, 600 Volt AC/250 Volt DC
- MFR:
- Appleton Electric
- MFR #:
- AR40034
- UPC:
- 781381296465
- Item #:
- 364556
4 Pole 3 Wire Receptacle; 400 Amp, 600 Volt AC/250 Volt DC
- MFR #:
- AR40034
- UPC:
- 781381296465
- Item #:
- 364556
Powertite Grounding Style 2 Receptacle, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 400 - 1000 MCM, Amperage Rating: 400 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum
Manuals & Documentation
| Catalog Number | AR40034 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 400 |
| Application | For AP40034E Plug |
| Connection | Solder Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Mounting | Box |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Grounding style: Shell only and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 0.84 IN |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381296465 |
| GTIN | 00781381296465 |
| Item Type | Grounding Style 2 Receptacle |
| Temperature Rating | -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 400 - 1000 MCM |
