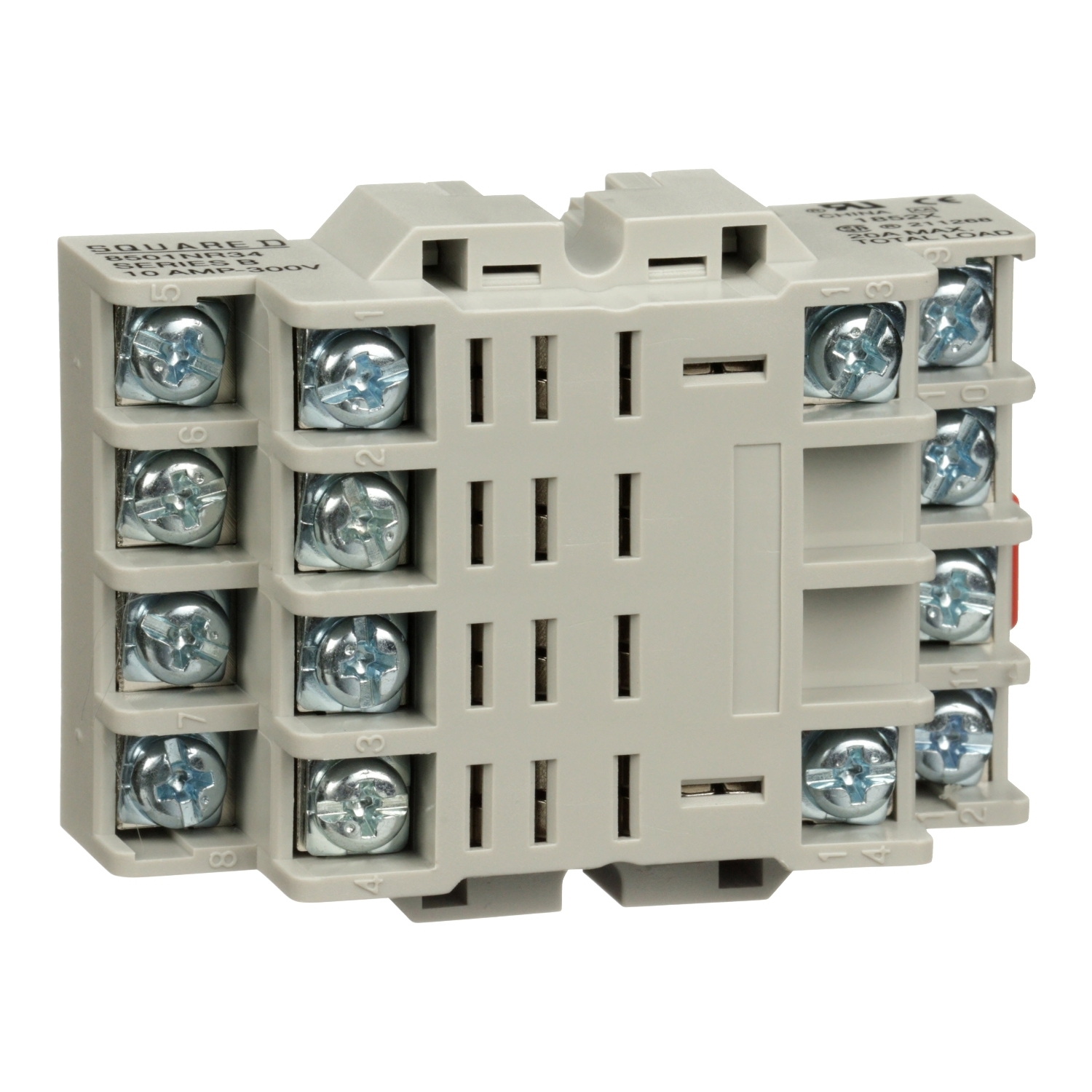

8501NR34 Type NR Relay Socket, 300 V AC, 10 A, For Use With Class 8501 Type R General Purpose Relay, 14 Pin
- MFR:
- Schneider Electric
- MFR #:
- 8501NR34
- UPC:
- 785901137313
- Item #:
- 36056
8501NR34 Type NR Relay Socket, 300 V AC, 10 A, For Use With Class 8501 Type R General Purpose Relay, 14 Pin
- MFR #:
- 8501NR34
- UPC:
- 785901137313
- Item #:
- 36056

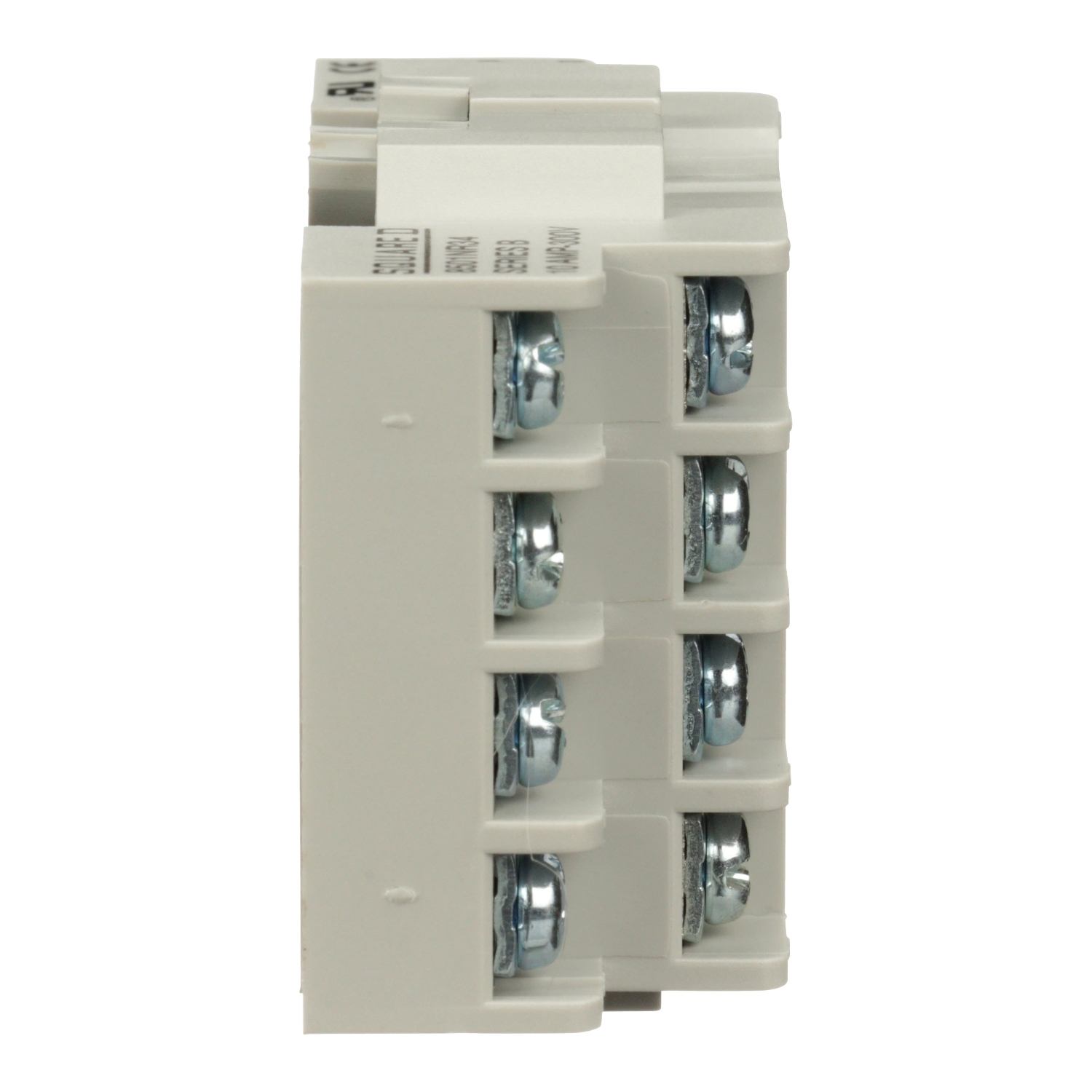

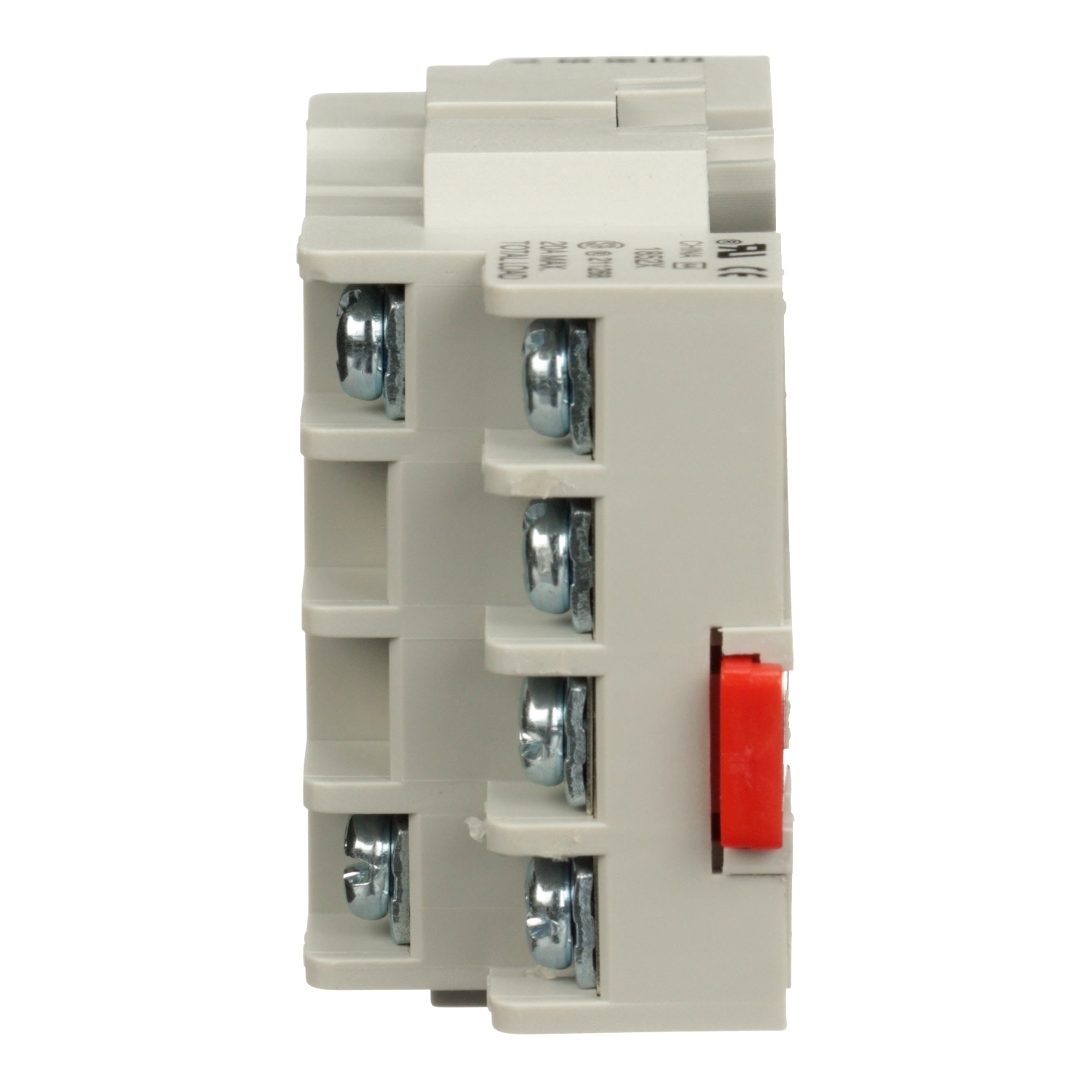

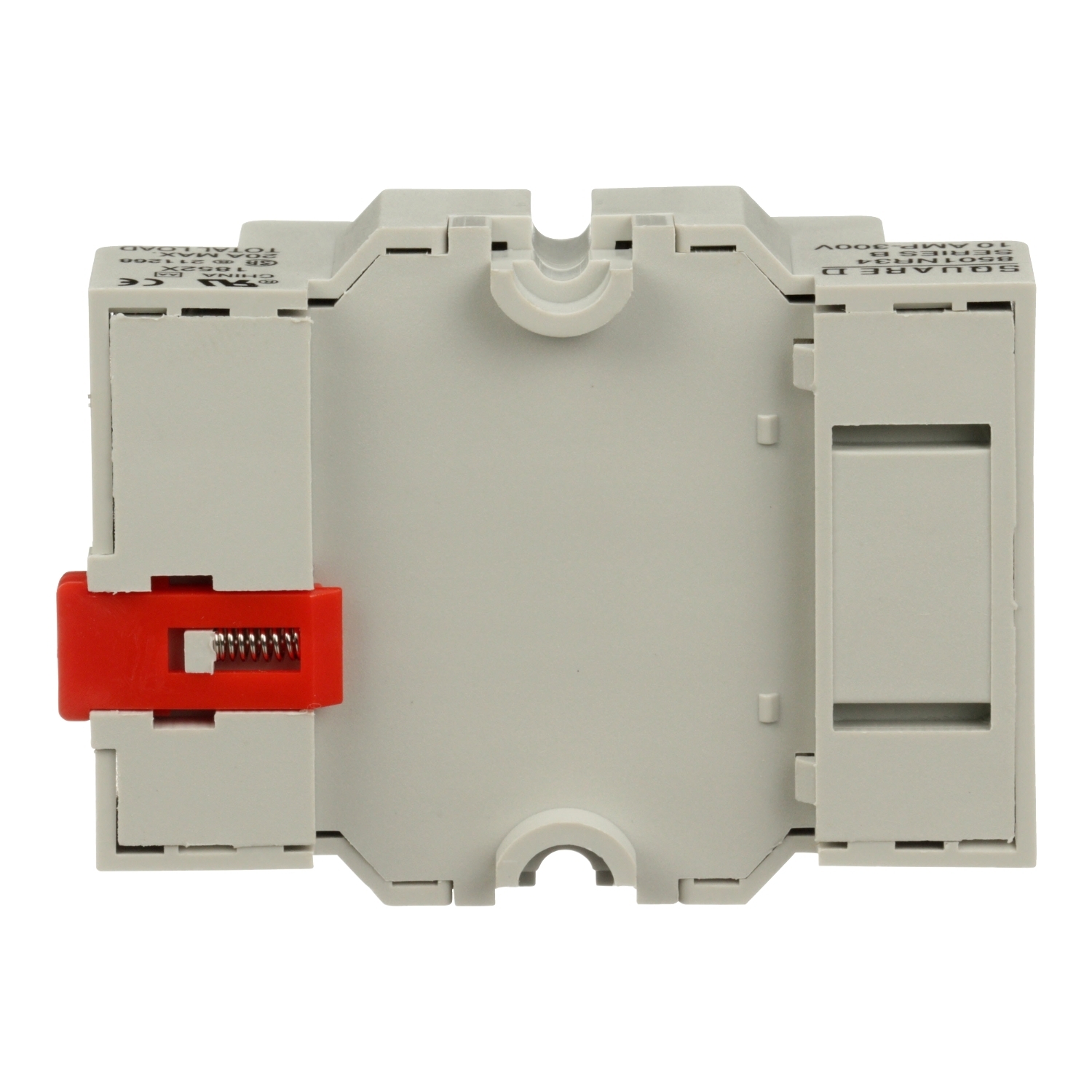

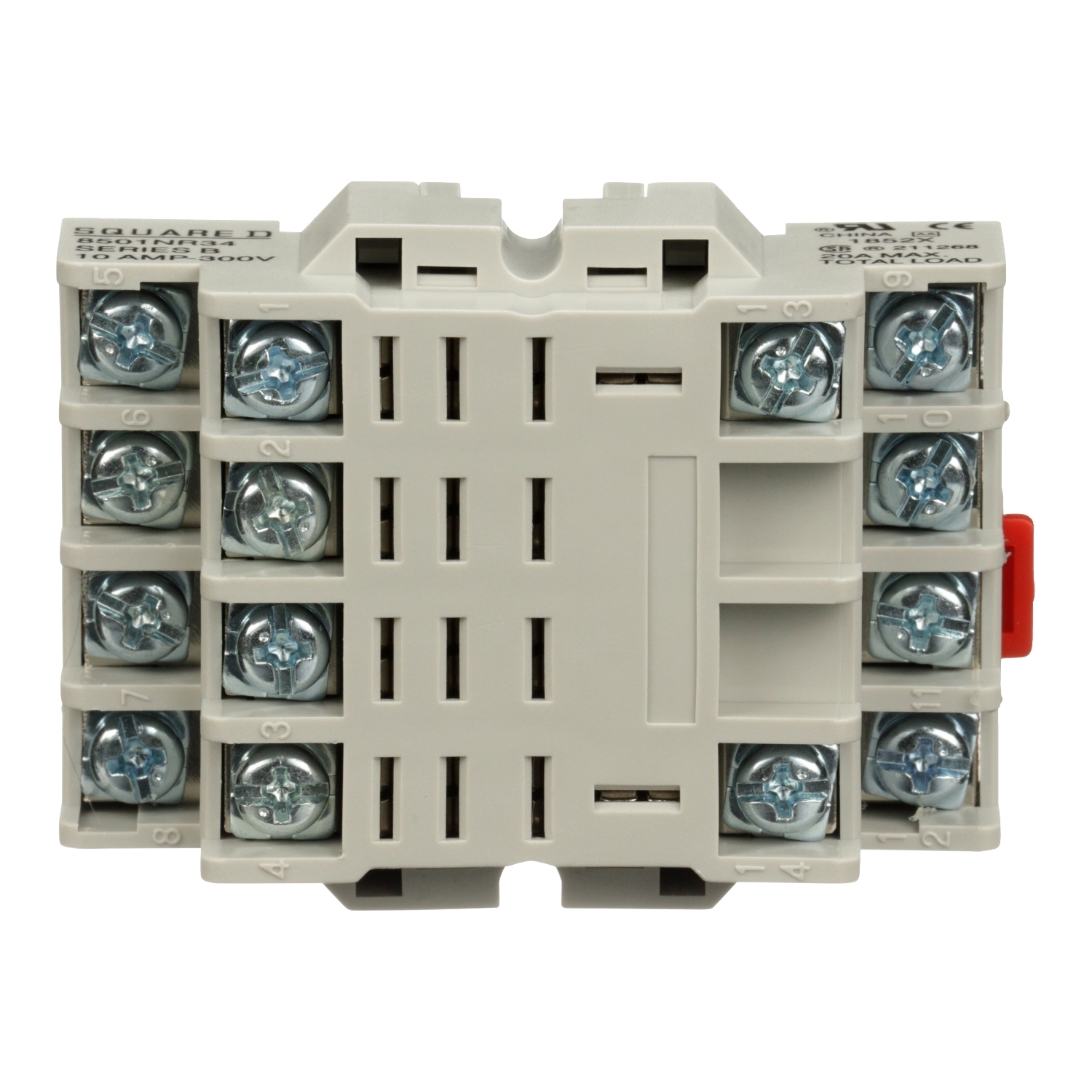

8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS44 or 8501RSD44 relay will plug into this relay socket which is designed for 14 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
| Catalog Number | 8501NR34 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | China |
| Made in USA | No |
| Mounting | Din Rail |
| Special Features | 1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=367273&lang=en-us |
| UPC | 785901137313 |
| GTIN | 00785901137313 |
| Width | 1.98030 |
| Width UOM | Inch |
| Height | 2.74020 |
| Height UOM | Inch |
| Depth | 1.09060 IN |
