Discontinued
ACME ELECTRIC

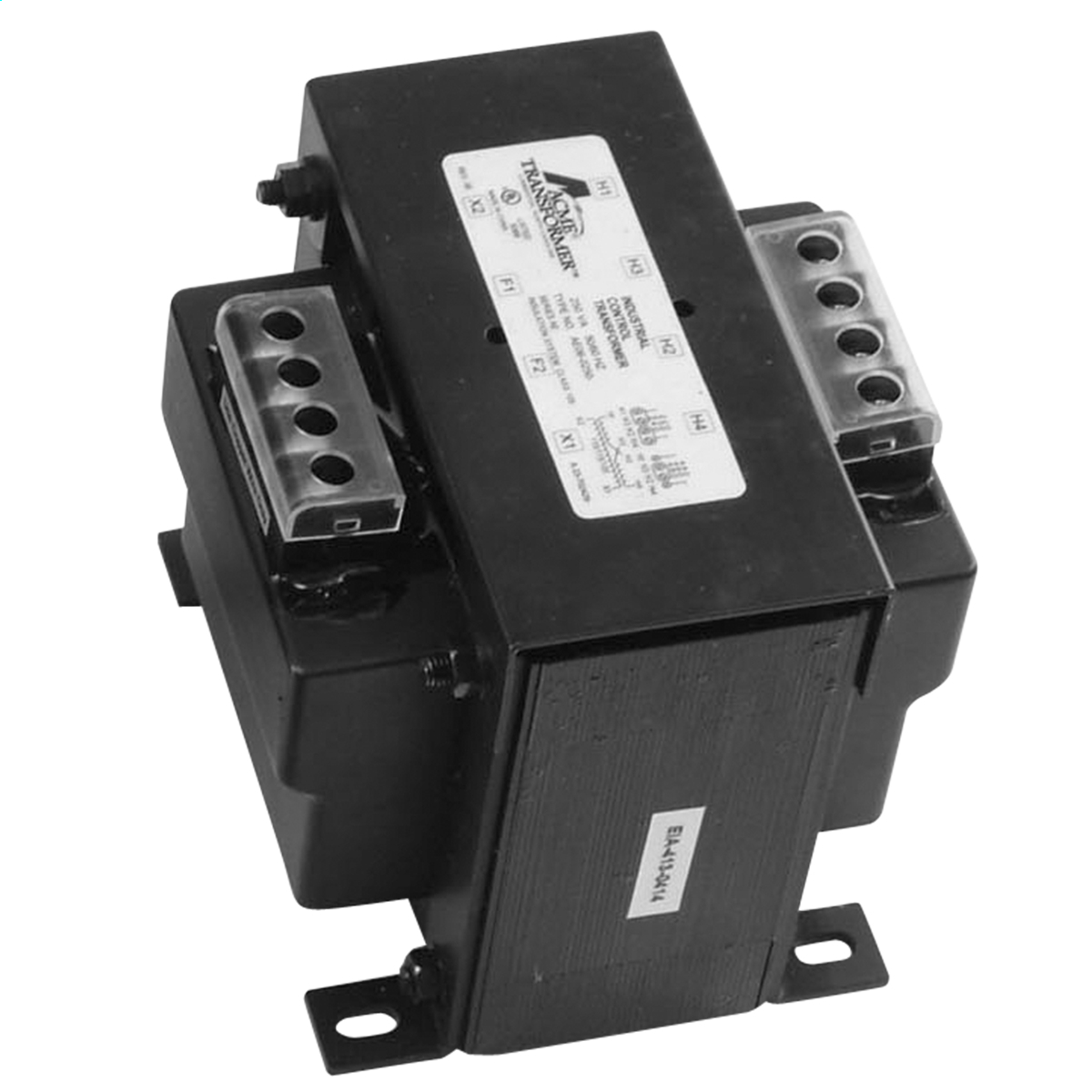

AE060100 AE Series Industrial Control Transformer, 220/440/230/460/240/480 V AC Primary, 110/115/120 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase

MFR:
Acme Electric, a Hubbell affiliate
MFR #:
AE060100
UPC:
047503696699
Item #:
360547
Catalog Number AE060100
Manufacturer Acme Electric, a Hubbell affiliate
Brand ACME ELECTRIC
Country of Origin China
Made in USA No
Application For Motor Starters, Contactors, Solenoids And Timers Or Other Loads
Enclosure NEMA 3R Steel
Frequency Rating 50/60 HZ
Insulation Class 105 DEG C Class A
Mounting Floor
Phase 1
Primary Voltage 220/440 X 230/460 X 240/480 V
Secondary Voltage 110/115/120 V
Special Features Encapsulated core and coil; These transformers have the ability to handle potentially damaging high in-rush currents that occur when electromagnetic components are energized, without sacrificing the required stable output voltage; Epoxy encapsulated design protects core and coil assembly from potentially damaging contaminants; Integrally molded terminal blocks with isolation barriers to prevent arc over, terminal blocks allow full access for ring terminals for easy installation and solid termination; Heavy gauge steel mounting feet; Dual labeling for easy product identification when equipped with a fuse block; Transformer enclosure temperature shall not exceed 65 DEG C plus the ambient; Transformer shall incorporate an electrostatic shield for the attenuation of voltage spikes, line noise and transients; Transformer coils are typically wound with aluminum or copper for increased insulation life, cooler operation and lower losses; The AE and CE series design improves the dissipation of the heat away from the core and coil assembly providing cooler operation; In addition, the AE and CE series industrial control transformers seal the transformer's windings and internal terminations within an epoxy encapsulated encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants; Furthermore, Acme's compact design helps minimize the mounting footprint, providing more flexibility in applications where space is a premium; 10-year limited warranty
Standard C/UL Listed, CSA Certified, OSHA Compliant, ANSI, IEEE
UPC 047503696699
GTIN 00047503696699
Item Type AE Series Industrial Control Transformer
Length 3.28
Length UOM Inch
Width 3.41
Width UOM Inch
Height 3.09
Height UOM Inch
Temperature Rating 55 DEG C Rise
