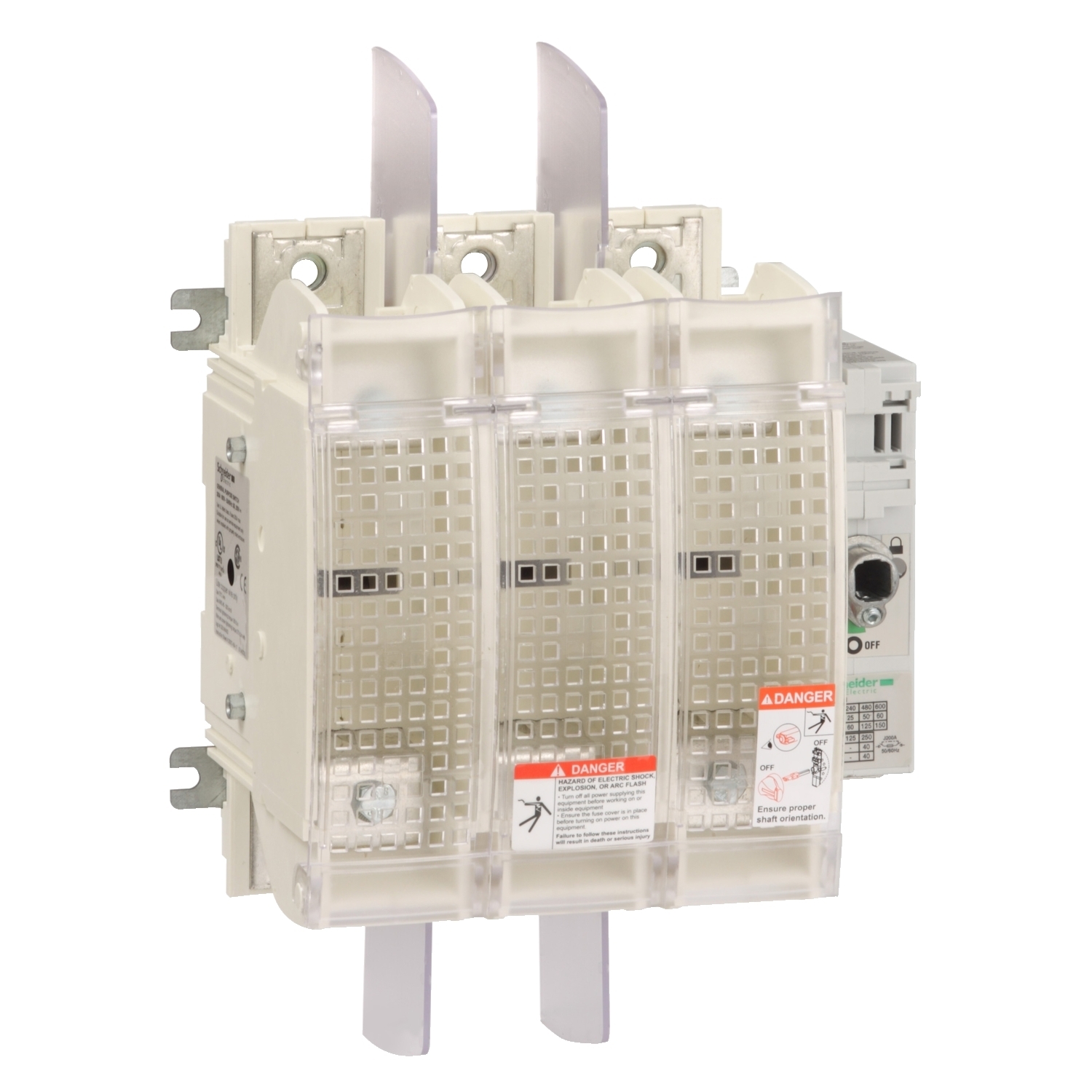

GS2MU3N TeSys Fusible Disconnect Switch With Terminal Cover, 600 V AC, 200 A, 150 hp, 3NO 3 Form A Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- GS2MU3N
- Item #:
- 360038
GS2MU3N TeSys Fusible Disconnect Switch With Terminal Cover, 600 V AC, 200 A, 150 hp, 3NO 3 Form A Contact, 3 Poles
- MFR #:
- GS2MU3N
- Item #:
- 360038
TeSys GS fuse switch-disconnector, 3 poles (3P), 200A/750V, to be used with class J fuse links up to 200A, for motor applications up to 100kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP43 (to be ordered separately), it provides high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.
Manuals & Documentation
| Catalog Number | GS2MU3N |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | France |
| Made in USA | No |
| Fuse Size | J |
| Fuse Type | UL |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402914709&lang=en-us |
| GTIN | 03606480512360 |
