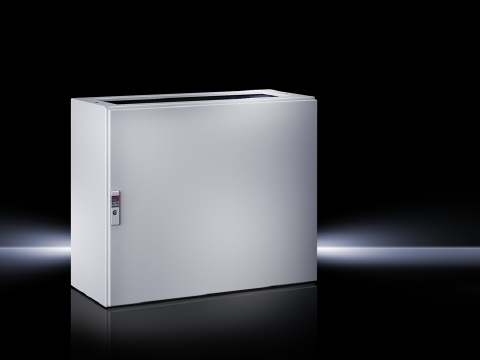

6706500 TP Series Pedestal Enclosure, 47 in W x 20 in D x 27 in H, NEMA 12/IP55, Sheet Steel
- MFR:
- Rittal
- MFR #:
- 6706500
- UPC:
- 639889844476
- Item #:
- 35935
6706500 TP Series Pedestal Enclosure, 47 in W x 20 in D x 27 in H, NEMA 12/IP55, Sheet Steel
- MFR #:
- 6706500
- UPC:
- 639889844476
- Item #:
- 35935
Pedestals, material: Enclosure: Sheet steel 1.5 mm, Door and console cover: Sheet steel, 2.0 mm, all-round foamed-in PU seal, surface: dipcoat-primed, powder-coated on the outside, textured paint, Mounting plate: Zinc-plated, color: RAL 7035, description: Four widths and two different depths are the basis for every TopConsole solution., produkt group: Console systems for ergonomic functionality at the human/machine interface.
Features
- Size: 675 mm x 1200 mm x 500 mm
- 16 Gauge enclosure, open at the top
- 14 Gauge double door with locking rod
- Right hand hinge
- Open base for individual cable entry options
| Catalog Number | 6706500 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Application | Industrial |
| Color | RAL 7035 |
| Consist of | Housing Open at Top, Depth-Adjustable Mounting Plate (with Depth 500 MM), Open Base for Individual Cable Entry |
| Material | Sheet Steel |
| Special Features | Features: Double Door |
| Standard | UL Listed, UL 508A, cULus Listed, cUL, CE |
| RoHS Indicator | Yes |
| UPC | 639889844476 |
| GTIN | 00639889844476 |
| Item Type | Pedestal |
| Length | 48.0000 |
| Length UOM | Inch |
| Width | 32.0000 |
| Width UOM | Inch |
| Height | 85.0000 |
| Height UOM | Inch |
| Weight | 420.194 |
| Weight UOM | Pounds |
| Size | 27 (H) x 47 (W) x 20 (D) |
