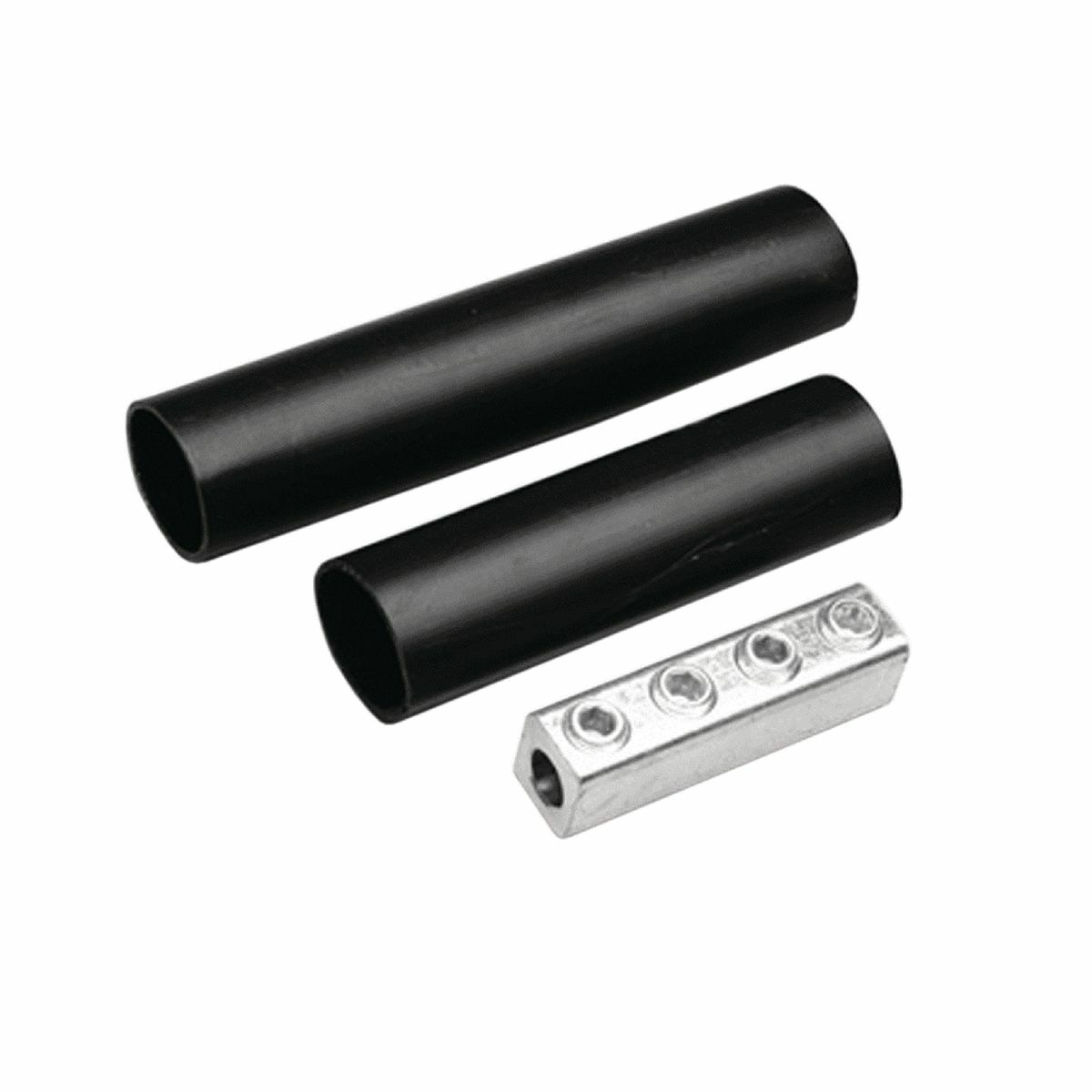

UGSKIT250 Underground Watertight Cable Splice Kit With Two Heavy Wall Heat Shrink Sleeves, 1 AWG to 250 kcmil Aluminum/Copper/Stranded Conductor, 4 Screws, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- UGSKIT250
- UPC:
- 781810175286
- Item #:
- 358511
UGSKIT250 Underground Watertight Cable Splice Kit With Two Heavy Wall Heat Shrink Sleeves, 1 AWG to 250 kcmil Aluminum/Copper/Stranded Conductor, 4 Screws, Aluminum
- MFR #:
- UGSKIT250
- UPC:
- 781810175286
- Item #:
- 358511
Manuals & Documentation
| Catalog Number | UGSKIT250 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Canada |
| Made in USA | No |
| Application | For All Aluminum or Copper/Aluminum Combinations, UF Direct Burial |
| Special Features | Features: Type UGS Watertight Underground Splice Kit Consists Of A Standard Ams Splice/Reducer And Two Heavy Wall Heat-Shrink Sleeves, The Ams Splice Is Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum That Provides Low Contact Resistance And Reduces The Effects Of Galvanic Corrosion, Connector Installed With Common Installation Tools, Both Heavy Wall Heat Shrink Sleeves Are Lined With Adhesive Material, Providing A Watertight Splice That Can Withstand Abrasions That May Occur During Direct Burial Applications, Heat Shrink Sleeve Installed With Standard Propane Torch, Or Electric Heat Gun, Includes: (4) 5/16 IN Hex Screws, Material: Aluminum, Finish: Tin Plated |
| Standard | UL486D |
| UPC | 781810175286 |
| GTIN | 00781810175286 |
| Item Type | UGSKIT, Watertight/ Underground |
| Cross Reference Products | DBK-250, SKAB-250, RSK-350 |
