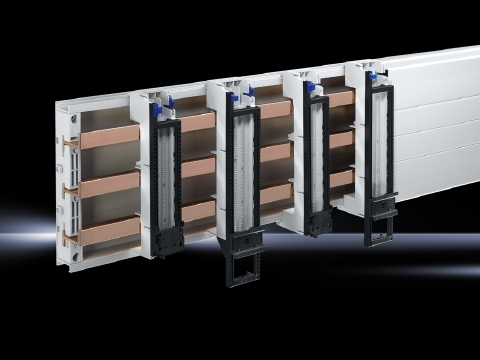

9340270 OM Support, 3-Pole, 1-Number of Support Rails, For Use With 5/10 mm Cross Section H Busbars, SV Type Enclosures, 60 mm Center-to-Center Spacing Bar System, Polyamide (PA 6.6), Pale Gray
- MFR:
- Rittal
- MFR #:
- 9340270
- UPC:
- 639889829992
- Item #:
- 357689
9340270 OM Support, 3-Pole, 1-Number of Support Rails, For Use With 5/10 mm Cross Section H Busbars, SV Type Enclosures, 60 mm Center-to-Center Spacing Bar System, Polyamide (PA 6.6), Pale Gray
- MFR #:
- 9340270
- UPC:
- 639889829992
- Item #:
- 357689
OM supports, without contact system, material: Polyamide (PA 6.6), Fire protection corresponding to UL 94-V0, color: Chassis: RAL 7035, description: For mounting of switchgear with external power supply.
Features
- Size: 55 mm Width x 50 mm Depth x 272 mm Height
- Extended height quick change component support frame included
- Without contact/connection System
- Bus type Riline60
| Catalog Number | 9340270 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Application | Industrial |
| Color | RAL 7035 (Chassis) |
| Material | Polyamide (PA 6.6) |
| Special Features | Features: Fire Protection |
| Standard | UL Listed, UL Recognized, cUL Listed, cUL Recognized, UL94 V-0 |
| RoHS Indicator | Under Review |
| UPC | 639889829992 |
| GTIN | 00639889829992 |
| Item Type | OM Support Without Contact System |
| Length | 10.8270 |
| Length UOM | Inch |
| Width | 3.5430 |
| Width UOM | Inch |
| Height | 2.3620 |
| Height UOM | Inch |
| Weight | 0.573 |
| Weight UOM | Pounds |
| Size | 11 (W) x 2.2 (H) |
