SQUARE D

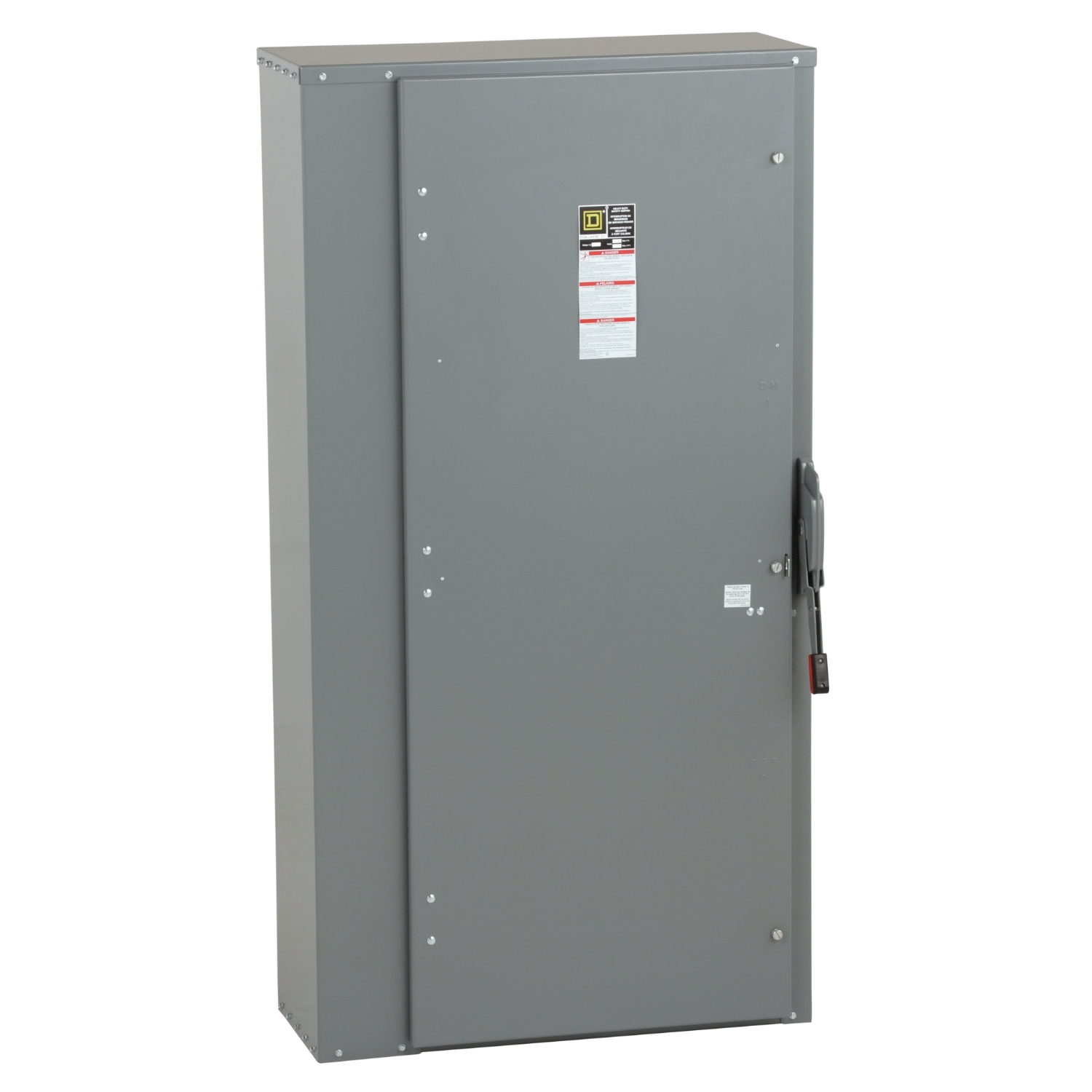

H227N E4 Fusible General Purpose Heavy Duty Safety Switch, 240 V AC/250 V DC, 800 A, 50 hp at 240 VAC/250 VDC, 2 Poles

MFR:
Schneider Electric
MFR #:
H227N
UPC:
785901195351
Item #:
35705

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a two pole fusible heavy duty safety switch that is rated at 800A with voltage of 240 VAC and 250 VDC. It is rated when using time delay fuses of 10 HP at 240 VAC single phase, 15 HP at 240 VAC three phase and 10 HP at 250 VDC. This switch has a 2 wire configuration and is rated for 12 to 3 AWG aluminum wire and 14 to 3 AWG copper wire. This device has enclosure rating of NEMA 4, 4X, 5 and it is made of stainless steel. It has a height of 14.93 in, width of 7.22 in and has a depth of 5.11 in. It is UL listed with the file E2875.

Manuals & Documentation
Catalog Number H227N
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Fuse Type L
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=363925&lang=en-us
UPC 785901195351
GTIN 00785901195351
Width 36.62
Width UOM Inch
Height 69.13
Height UOM Inch
Depth 17.75 IN
