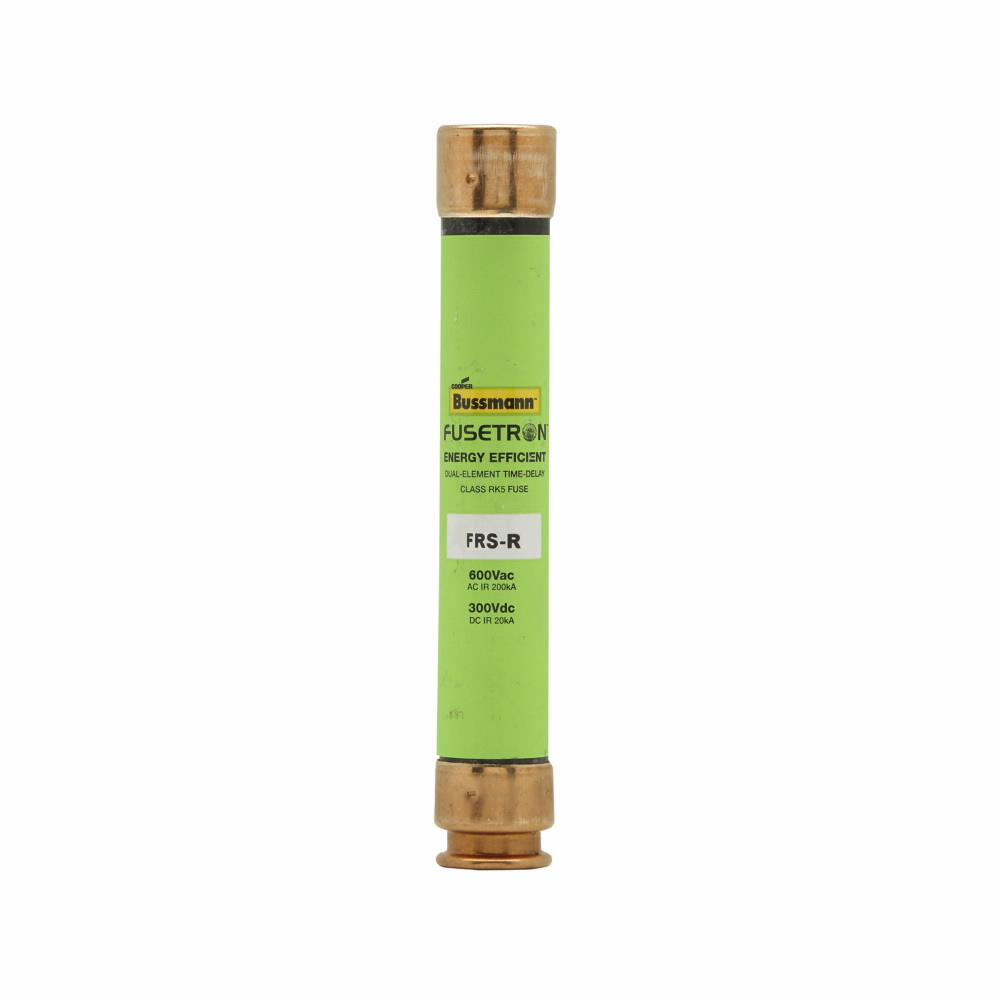

Eaton Bussmann series FRS-R fuse, 3.5 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc
- MFR:
- Eaton Bussmann
- MFR #:
- FRS-R-3-1/2
- UPC:
- 051712508193
- Item #:
- 356359
Eaton Bussmann series FRS-R fuse, 3.5 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc
- MFR #:
- FRS-R-3-1/2
- UPC:
- 051712508193
- Item #:
- 356359
Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500 of rated current (8 seconds for 1/10-30A sizes).
Manuals & Documentation
| Catalog Number | FRS-R-3-1/2 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 20 kAIC at 300 Vdc|200 kAIC at 600 Vac |
| Response Time | 10 S at 500% |
| Special Features | Renewable |
| Standard | CE Marked |
| UPC | 051712508193 |
| GTIN | 00051712508193 |
| Item Type | Fuse |
| Size | 0.81 In Diameter X 5.00 In Length |
| Voltage Rating | 600 Vac, 300 Vdc |
