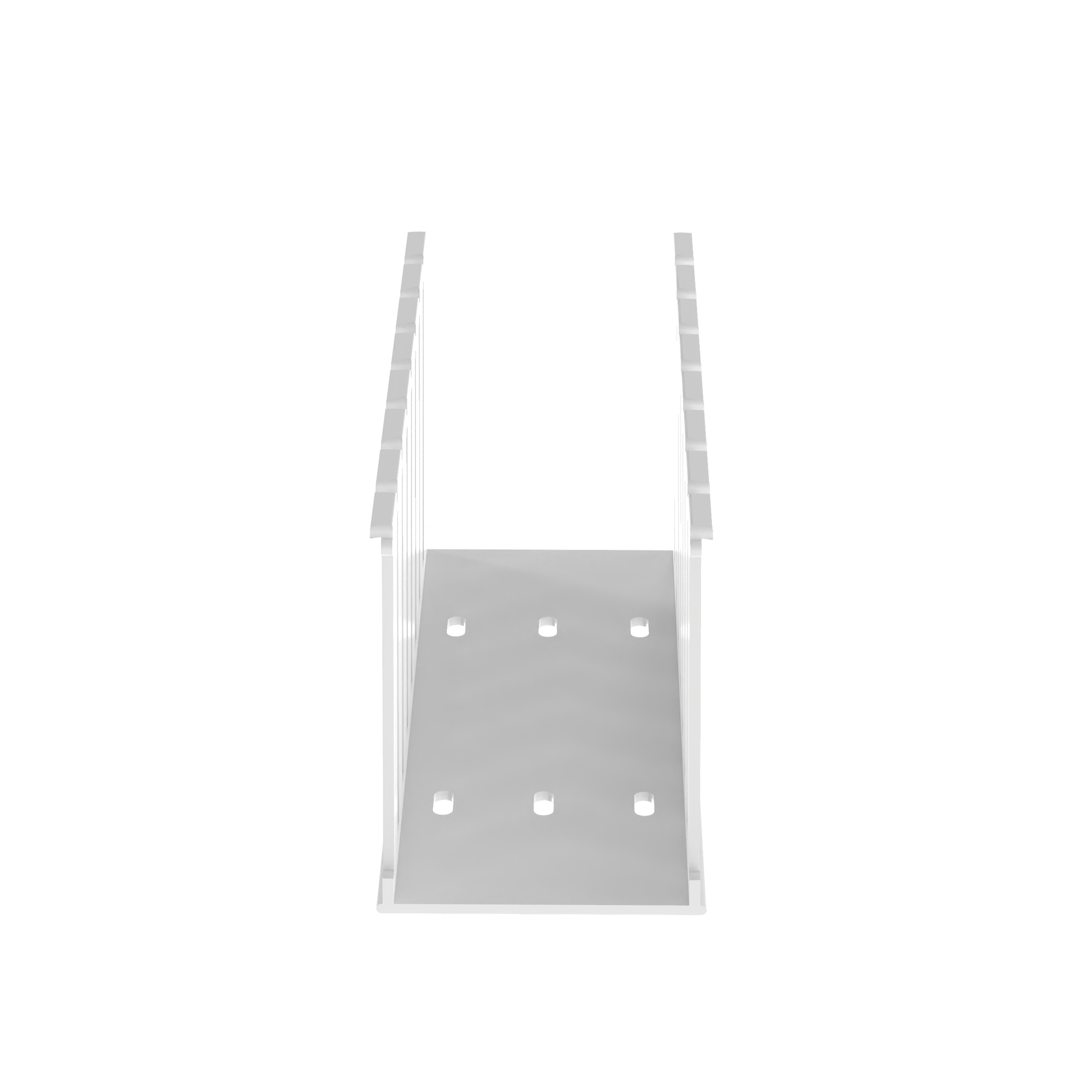

The NE3X4WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95C (203F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 4.06 x 3.14 (103.1 mm x 79.8 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.
Manuals & Documentation
| Catalog Number | NE3X4WH6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications |
| Color | White |
| Connection | DIN Mounting Holes |
| Material | PPO |
| Slot Pitch | 0.31 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1 |
| UPC | 074983215065 |
| GTIN | 00074983215065 |
| Item Type | Base Wiring Duct |
| Length | 6.00 |
| Width | 3.14 |
| Width UOM | Inch |
| Size | 3.00 x 4.00 |
