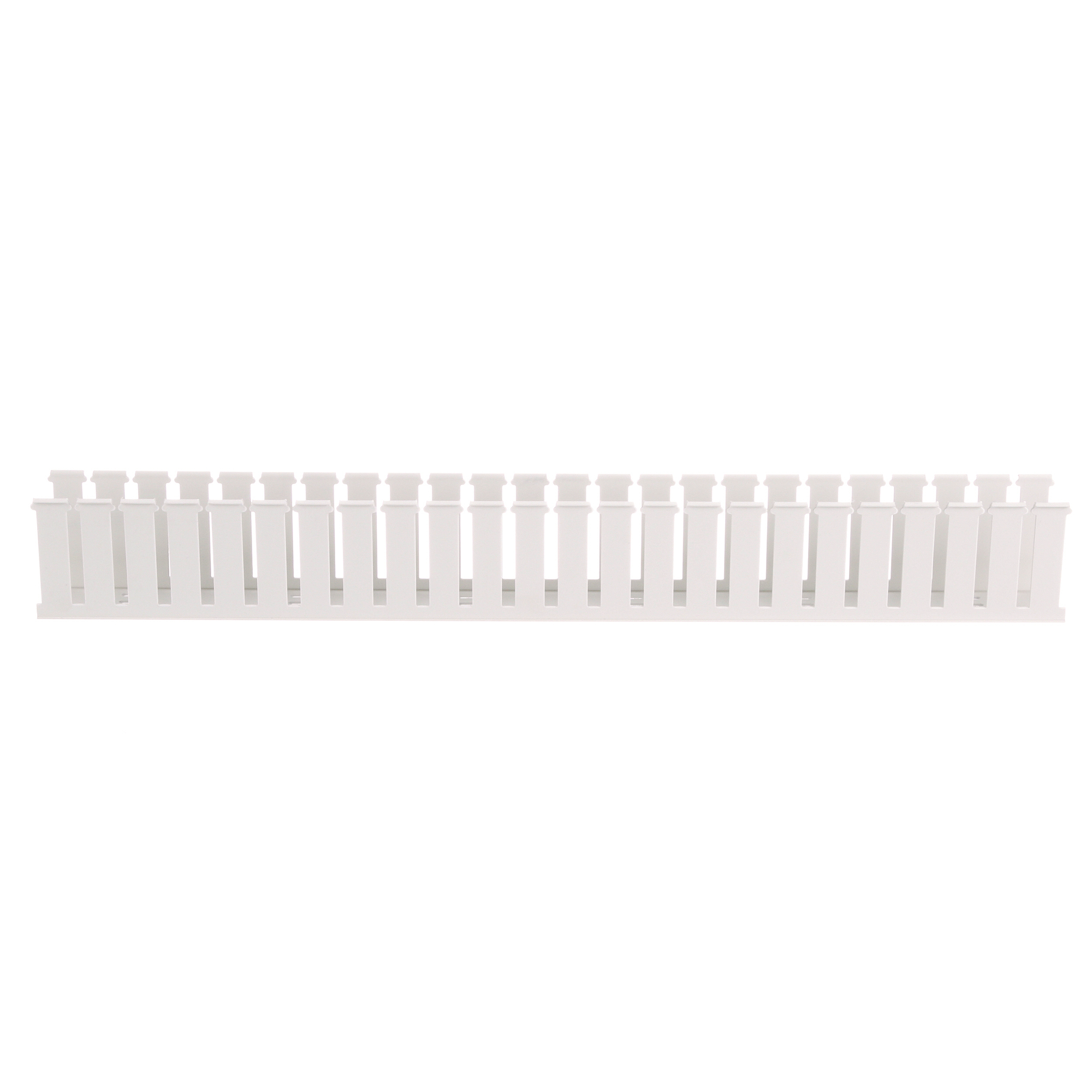

The NE2X3WH6 Panduct NE Halogen-Free Slotted Wiring Duct has a nominal duct size designed to optimize space. Manufactured with a special-purpose material for use in halogen-free or high-temperature applications. It has a UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95C (203F) and is 20% lighter than PVC. Mounting holes provided. Modified Polyphenylene Oxide (mPPO). 2 x 3 (50.8mm x 76.2mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6/package.
Manuals & Documentation
| Catalog Number | NE2X3WH6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of flame retardant applications |
| Color | White |
| Connection | DIN Mounting Holes |
| Material | PPO |
| Slot Pitch | 0.31 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1 |
| UPC | 074983214945 |
| GTIN | 00074983214945 |
| Item Type | Base Wiring Duct |
| Width | 2.14 |
| Width UOM | Inch |
| Size | 2.00 x 3.00 |
