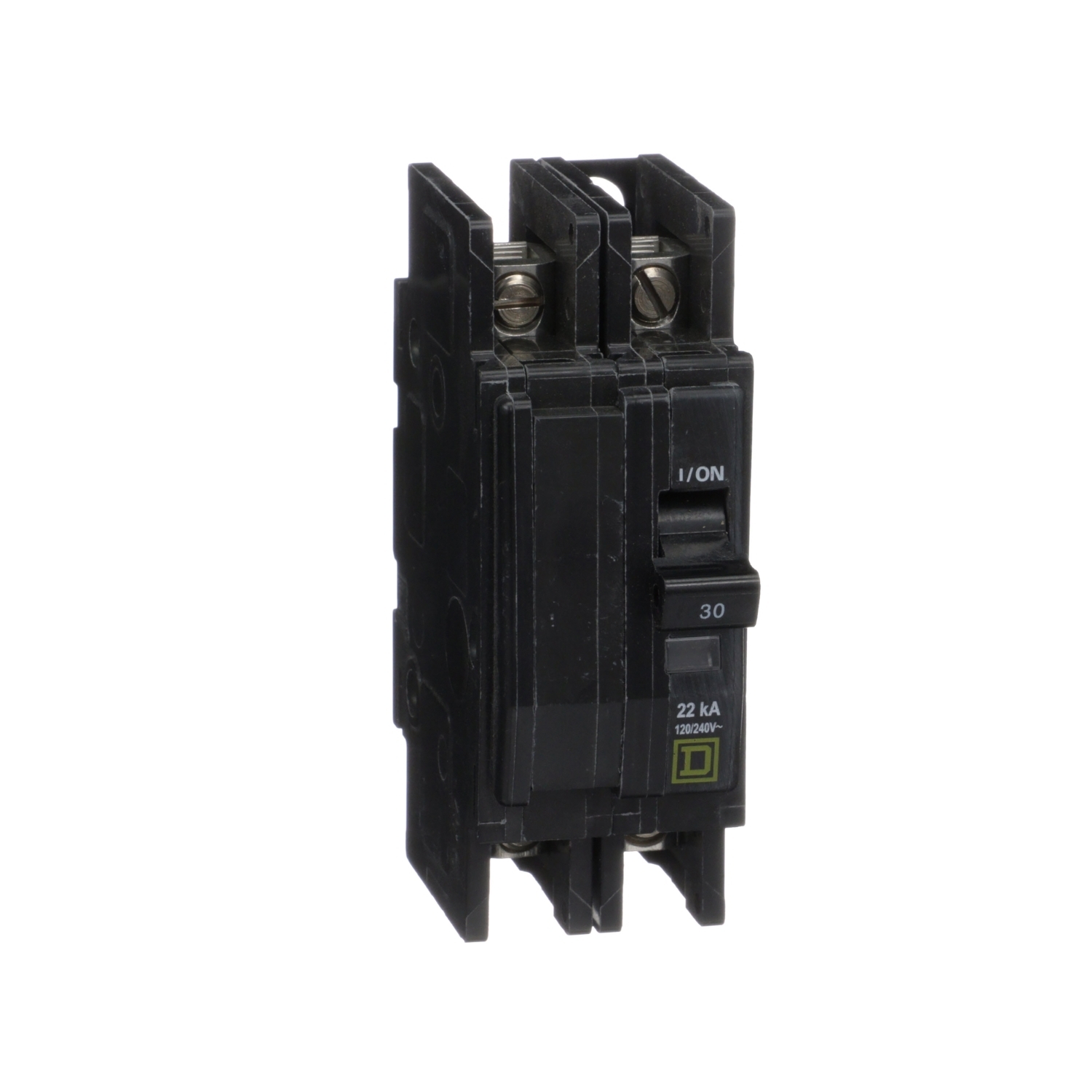

QOU230VH Miniature Circuit Breaker, 30 Amp, 2 Pole, 120/240V
- MFR:
- Schneider Electric
- MFR #:
- QOU230VH
- UPC:
- 785901559894
- Item #:
- 355253
QOU230VH Miniature Circuit Breaker, 30 Amp, 2 Pole, 120/240V
- MFR #:
- QOU230VH
- UPC:
- 785901559894
- Item #:
- 355253
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting. [Delete]
Manuals & Documentation
| Catalog Number | QOU230VH |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | HACR rated |
| Connection | Slotted box lugs, line side;slotted box lugs, load side;AWG 14...AWG 2 aluminium/copper |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402399&lang=en-us |
| UPC | 785901559894 |
| GTIN | 00785901559894 |
| Item Type | Miniature circuit-breaker |
| Width | 1.500000000000000 |
| Width UOM | Inch |
| Height | 4.050000000000000 |
| Height UOM | Inch |
| Depth | 2.95 IN |
| Voltage Rating | 120/240 V AC |
