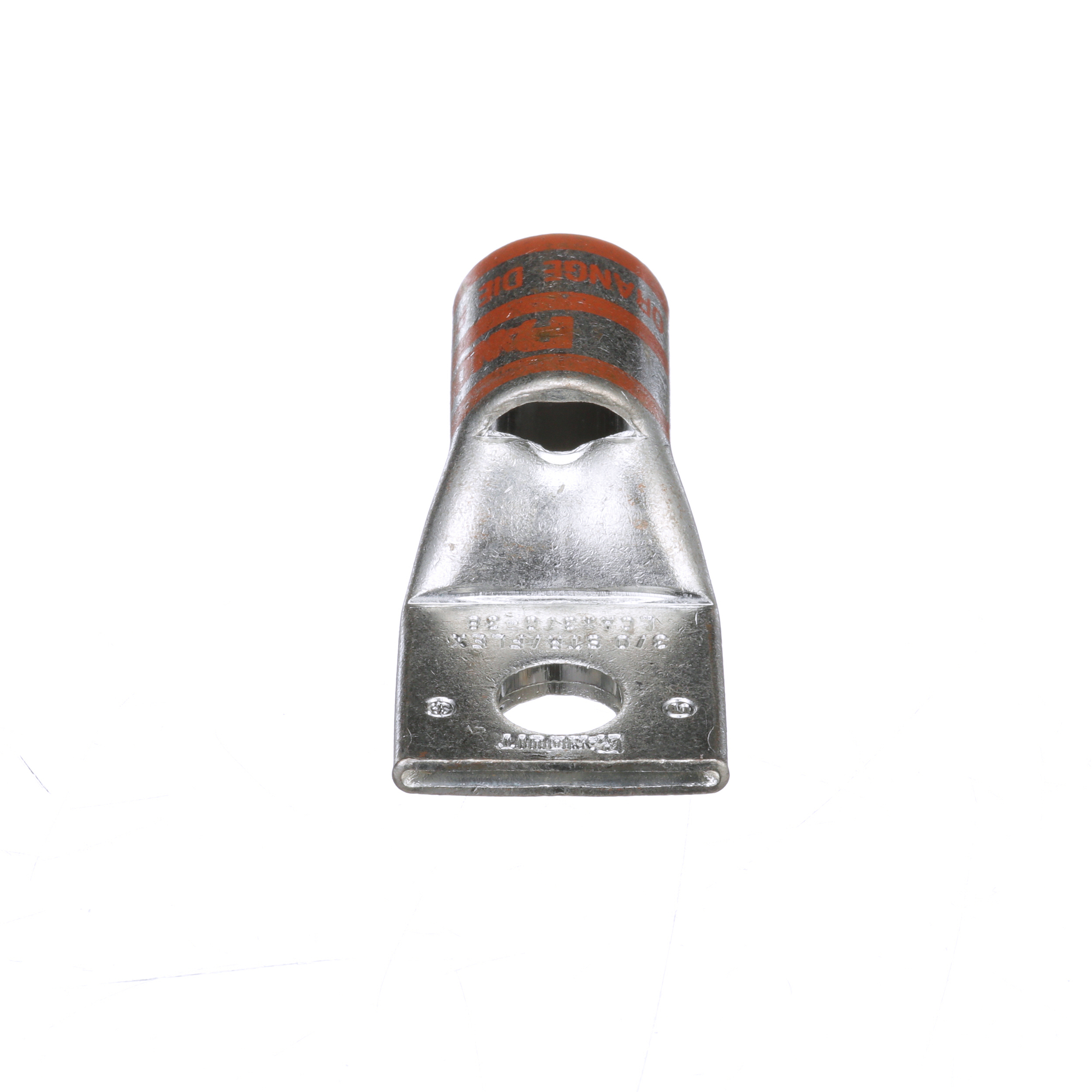

The LCAX3/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
Manuals & Documentation
| Catalog Number | LCAX3/0-38-X |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Orange |
| Material | Copper |
| Number of Holes | 1 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| UPC | 074983435517 |
| GTIN | 00074983435517 |
| Item Type | Compression Lug |
| Size | 3/0 AWG Class B, C, G, H, I, K, M and DLO |
| Stud Size | 3/8 IN |
