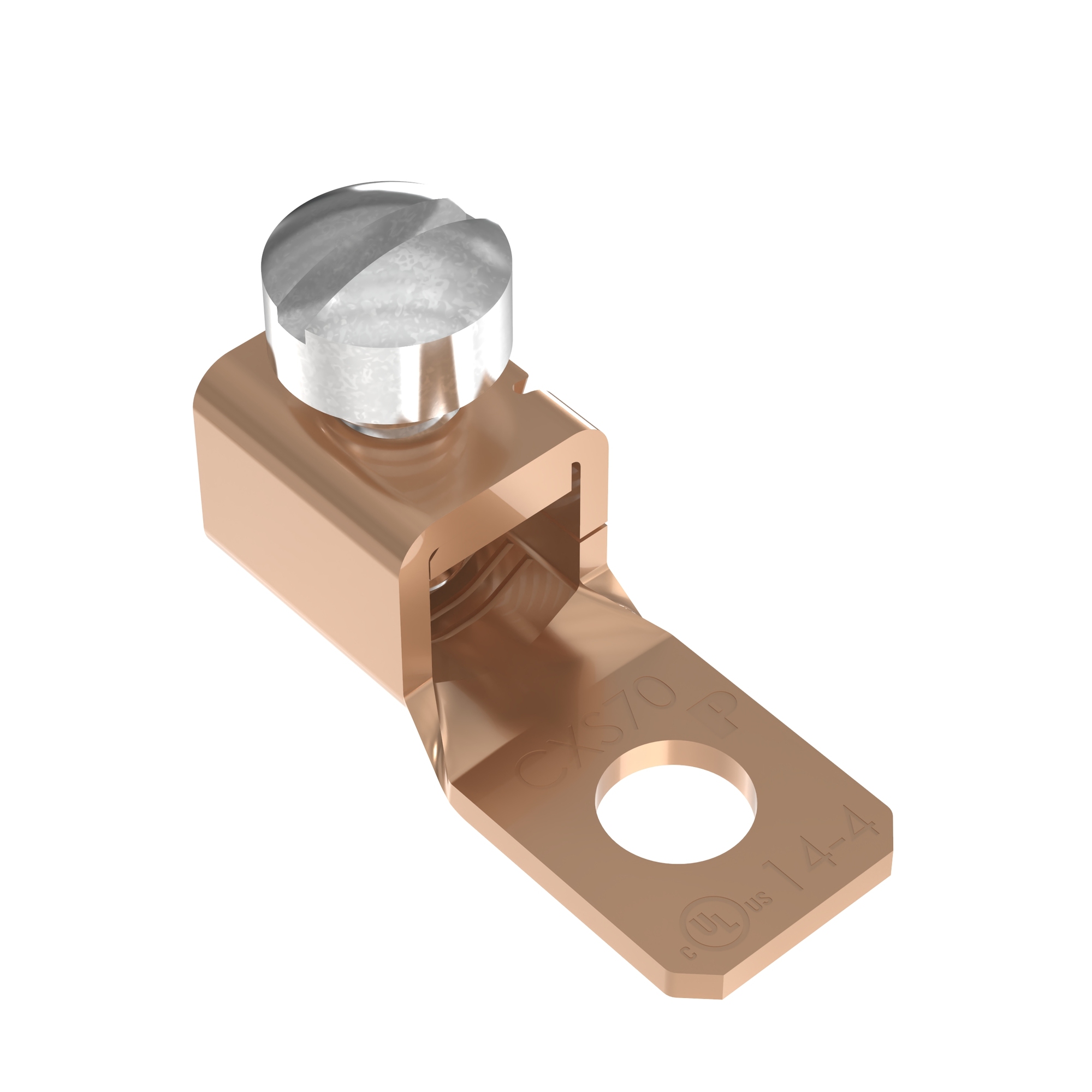

The CXS70-14-C Mechanical Connector Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel slotted screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.
Manuals & Documentation
| Catalog Number | CXS70-14-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Copper Mechanical Lug |
| Material | Copper |
| Number of Holes | 1 |
| Standard | cULus Listed for use up to 600V & Temperature Rated to 90 Degrees C |
| UPC | 074983837304 |
| GTIN | 00074983837304 |
| Item Type | Mechanical Lug |
| Stud Size | 1/4 IN |
| Voltage Rating | 600 |
