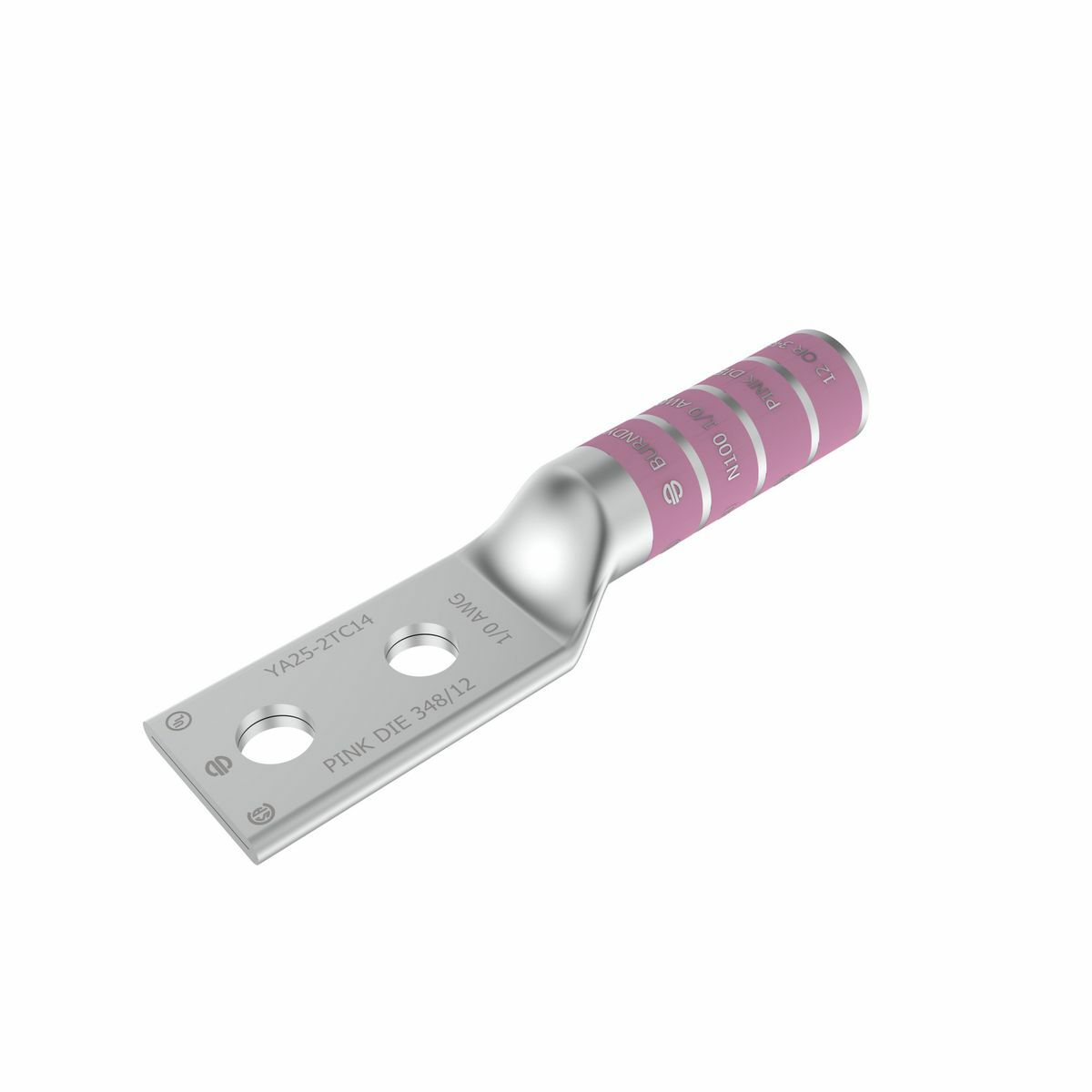

YA252TC38 YA-2TC 2-Hole Compression Lug, 1/0 AWG Solid/Stranded Copper Conductor, Die Code: 12, 3/8 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA252TC38
- UPC:
- 781810019825
- Item #:
- 353396
YA252TC38 YA-2TC 2-Hole Compression Lug, 1/0 AWG Solid/Stranded Copper Conductor, Die Code: 12, 3/8 in Stud, Tin Plated Copper
- MFR #:
- YA252TC38
- UPC:
- 781810019825
- Item #:
- 353396
Manuals & Documentation
| Catalog Number | YA252TC38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Wire Strip Length: 1-7/16 IN, Finish: Electro-Tin Plated, Die Index: 12, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W25VT, W25RT, X25RT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W25VT, W25RT, X25RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U25RT, U2CABT Die, (2), Y46 Tool, U25RT, U2CABT Die With PUADP-1 Adapter, (2), Color Code: Pink, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2), MRC840 Tool, (4) |
| Standard | UL 486A-486B |
| UPC | 781810019825 |
| GTIN | 00781810019825 |
| Item Type | Long Barrel, Tin Plated |
| Voltage Rating | 35 |
| Cross Reference Products | 256-30695-1162 |
